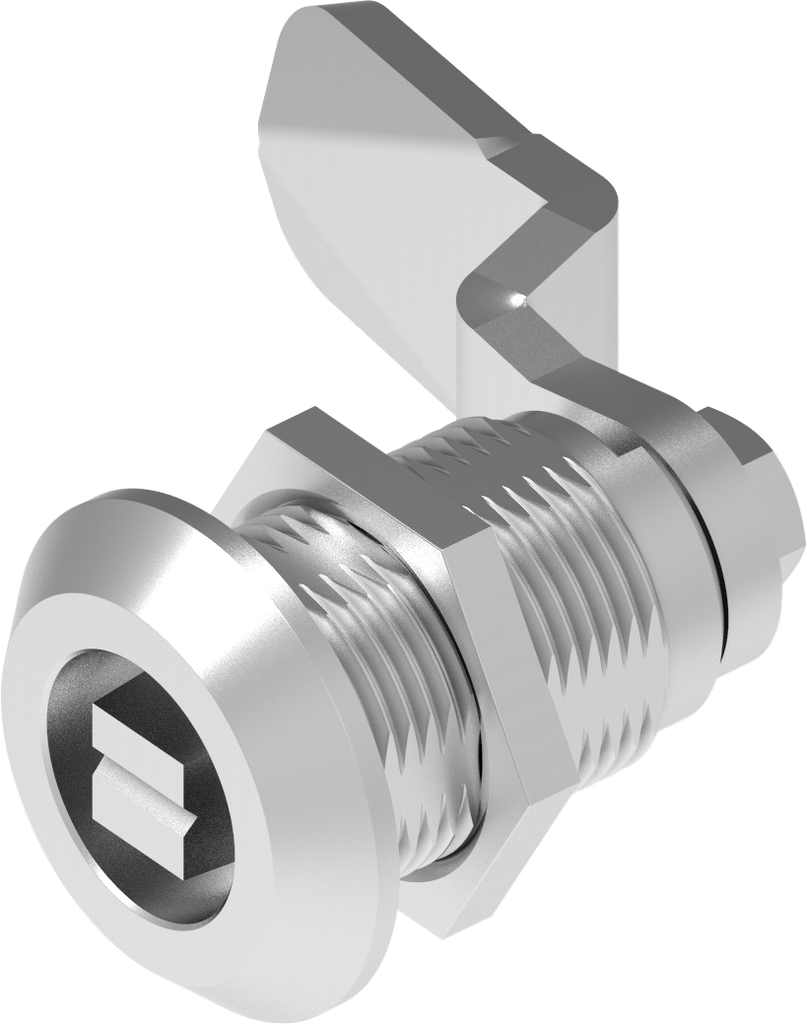

Quarter turn version railway in conformity with RIC, Stainless steel AISI 303
Quarter turn version railway in conformity with RIC, Stainless steel AISI 303

Quarter turn version railway in conformity with RIC, Stainless steel AISI 303; 1000-SU543-PF

https://www.emka.com/products/1000-su543-pf https://www.emka.com/web/image/product.template/204509/image_1920?unique=47e3854

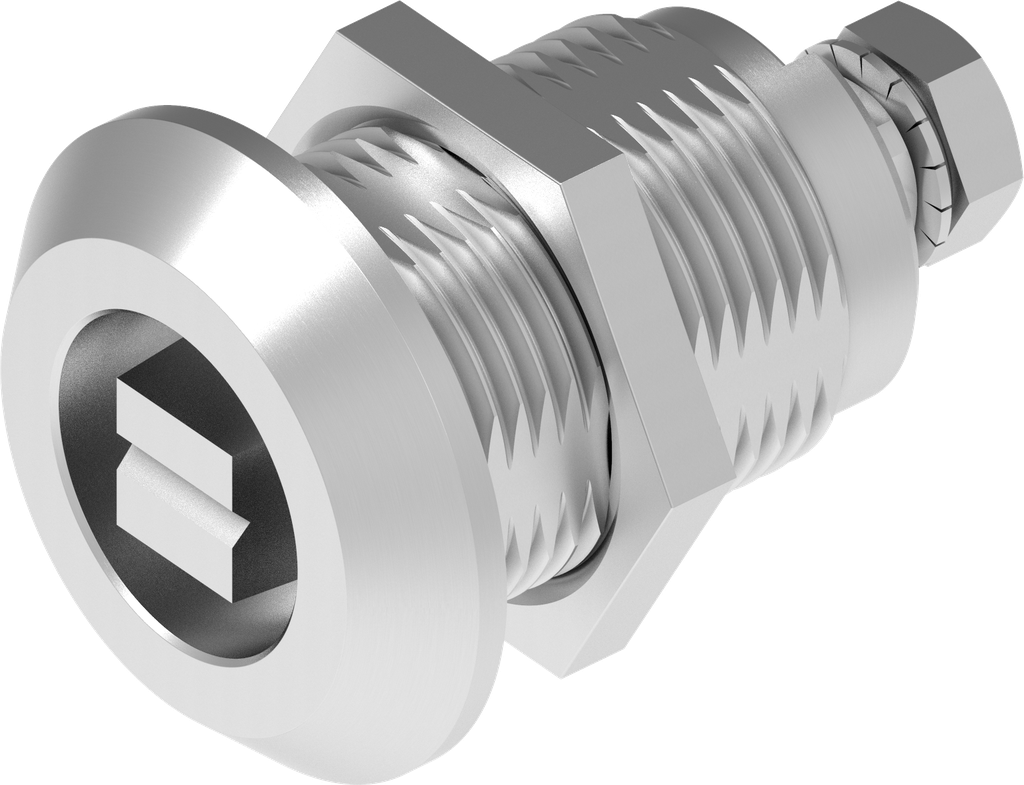

with stainless steel nut


    This combination does not exist.

    Inside the sealing Left Right


    Internal Reference: 1000-SU543-PF
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 9 with V-slot, railway version
    Mounting Positions : Inside the sealing

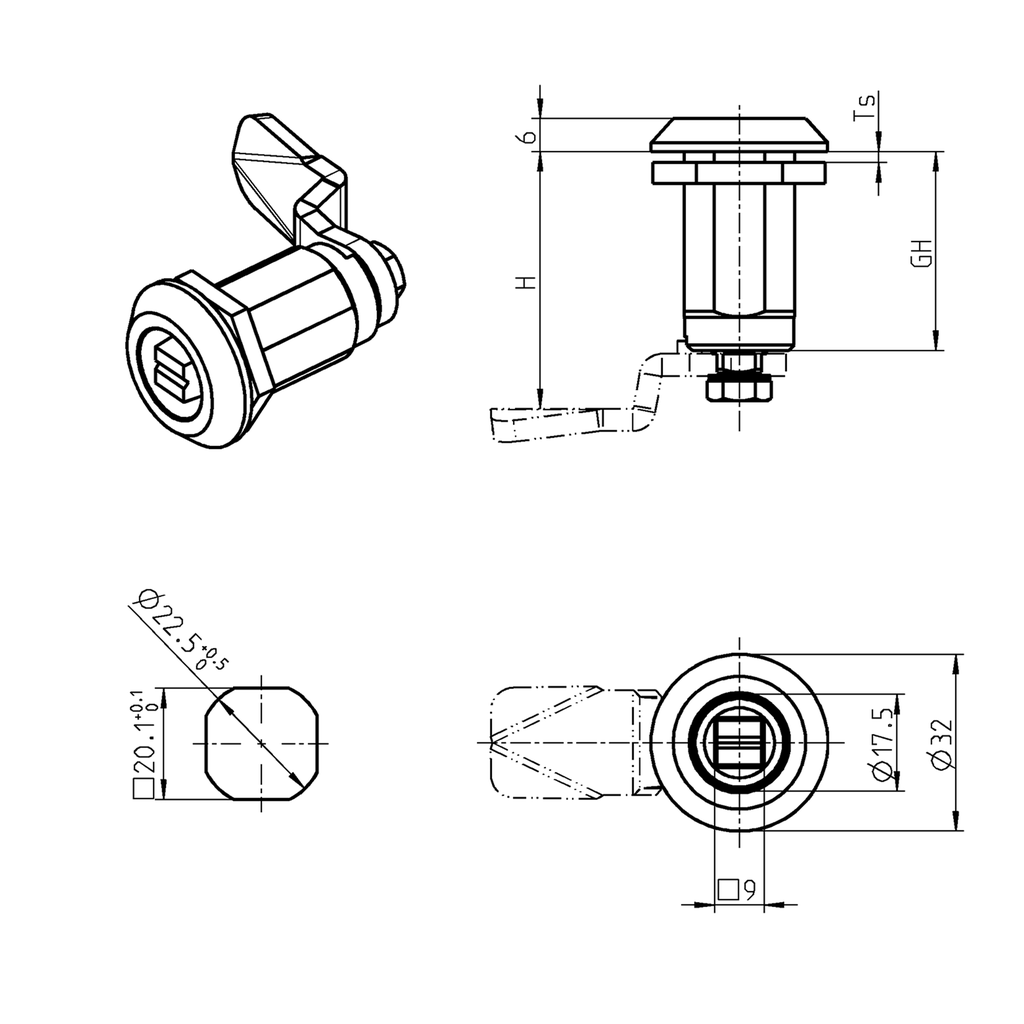

    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 30 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 20 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Dust cap - Finger pull
    Assembly
    Keys
    Here you can find the product data sheets and CAD files of this product
