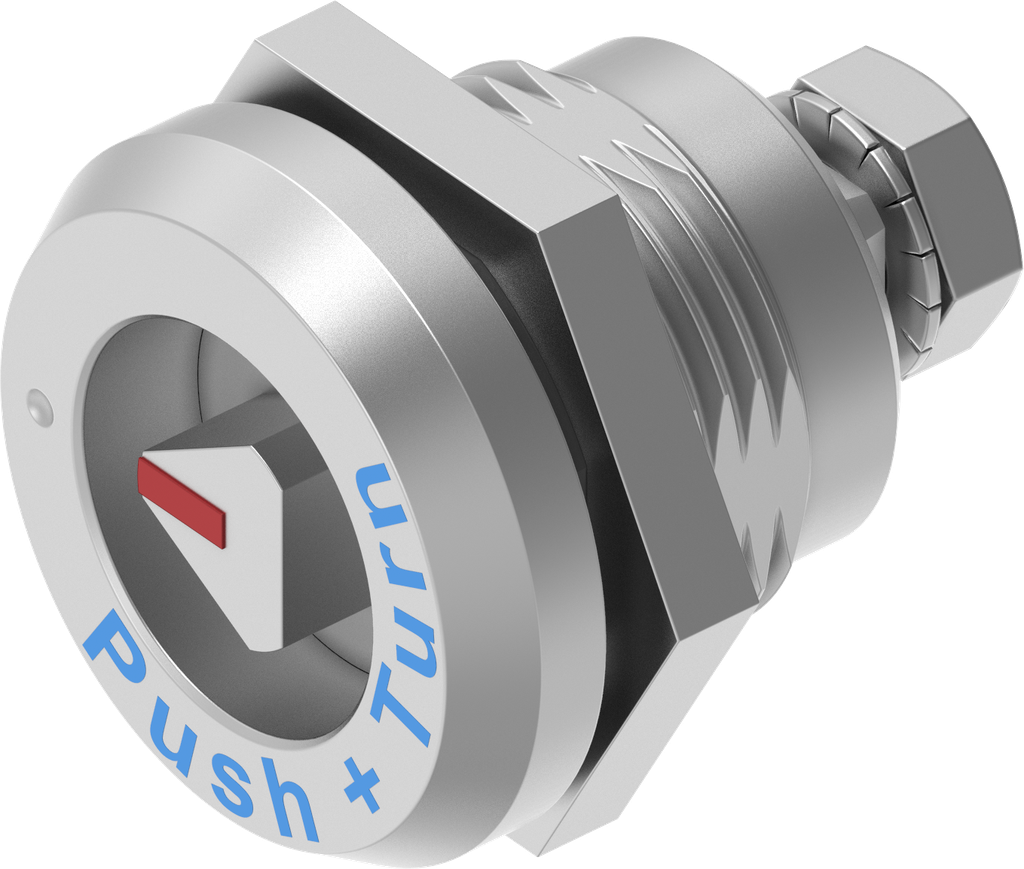

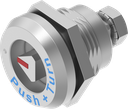

Safety quarter turn triangular 8 with marking, Stainless steel AISI 316; 1000-SU51

https://www.emka.com/products/1000-su51 https://www.emka.com/web/image/product.template/203673/image_1920?unique=47e3854

with stainless steel nut


    This combination does not exist.

    Inside the sealing Protection class IP 65 DIN EN 61373 (shock and vibration testing) DIN EN 45545-2 class E20 (fire protection) Left Right


    Product information:

    Safety quarter turn:
    The safety quarter turn is of a vibration-proof design.
    Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.

    Internal Reference: 1000-SU51
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Type of actuation: Triangular 8
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

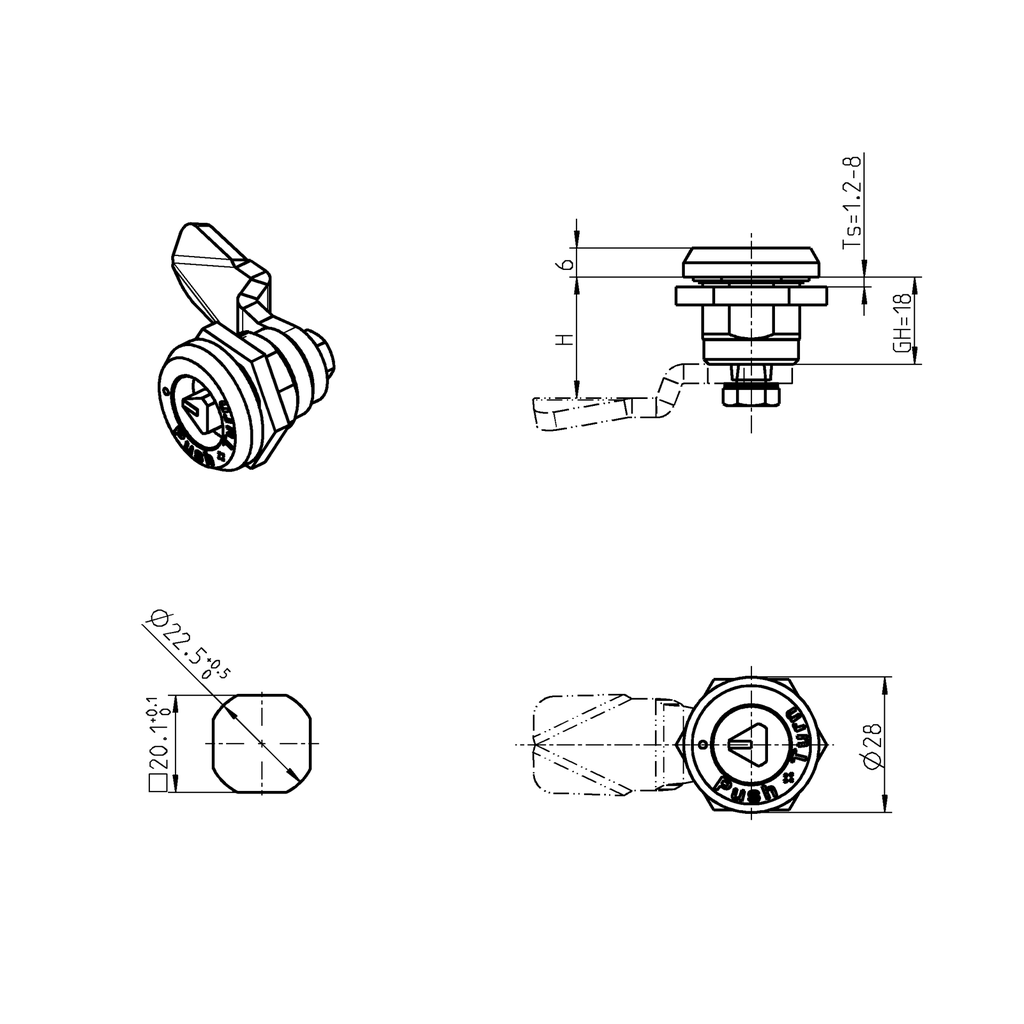

    Housing Head Size: 28 x 6 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right

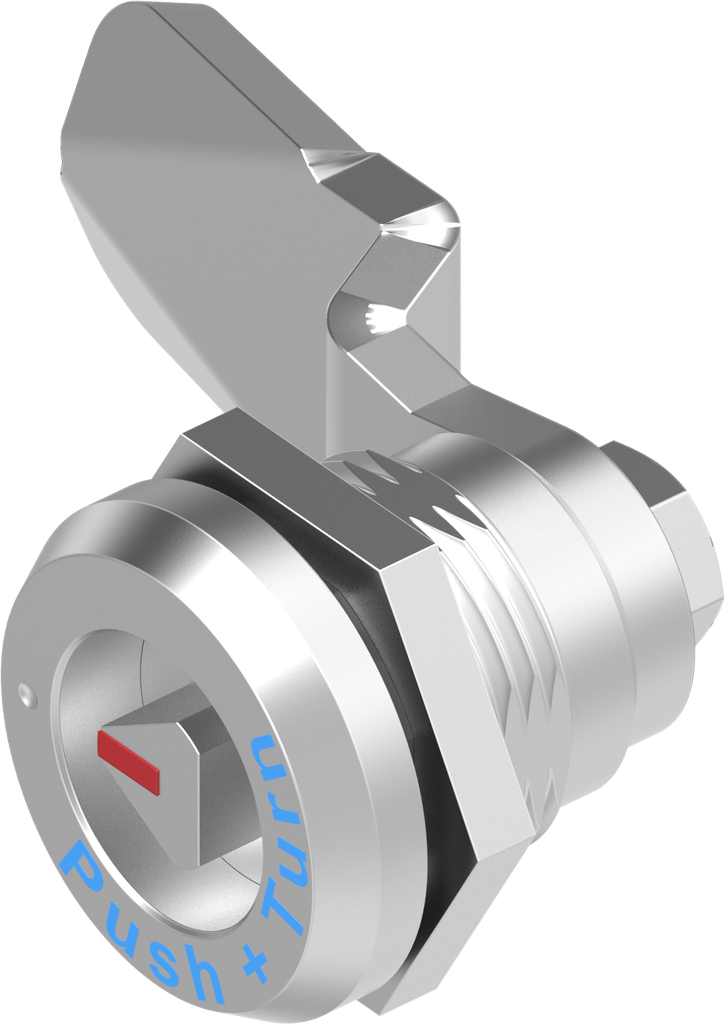

    Locking components: Cam
    Quarter turn types: Safety quarter turn
    No Specifications
