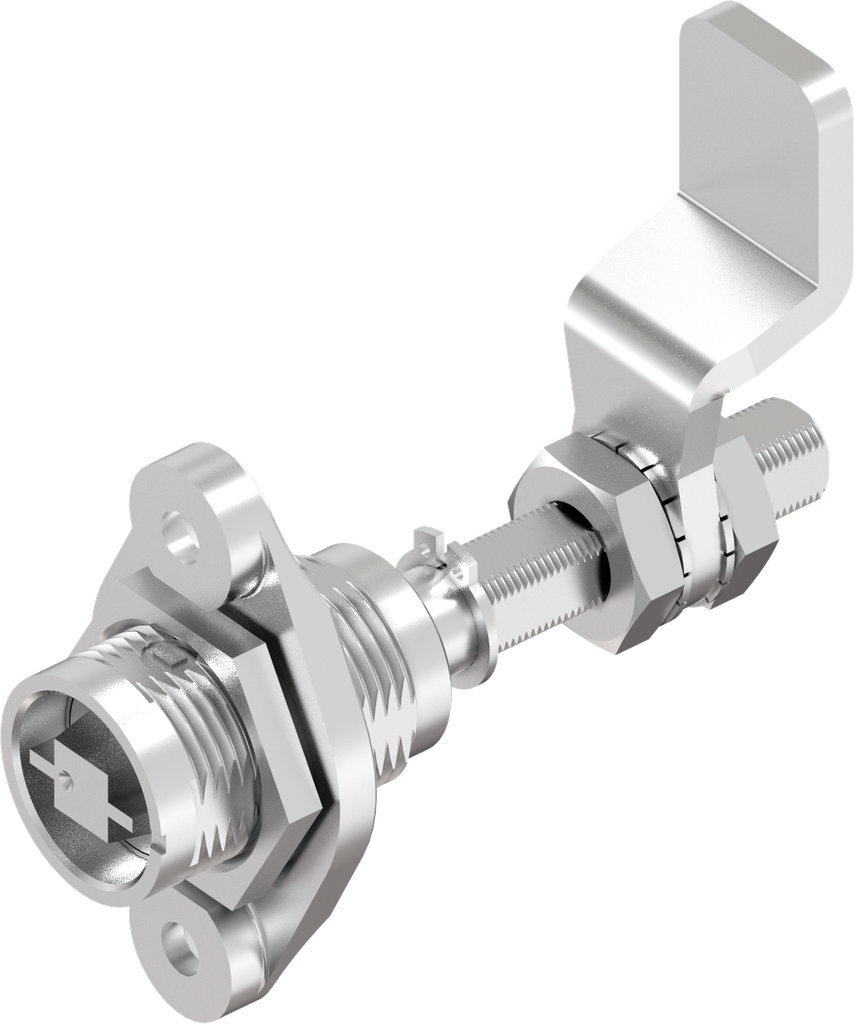

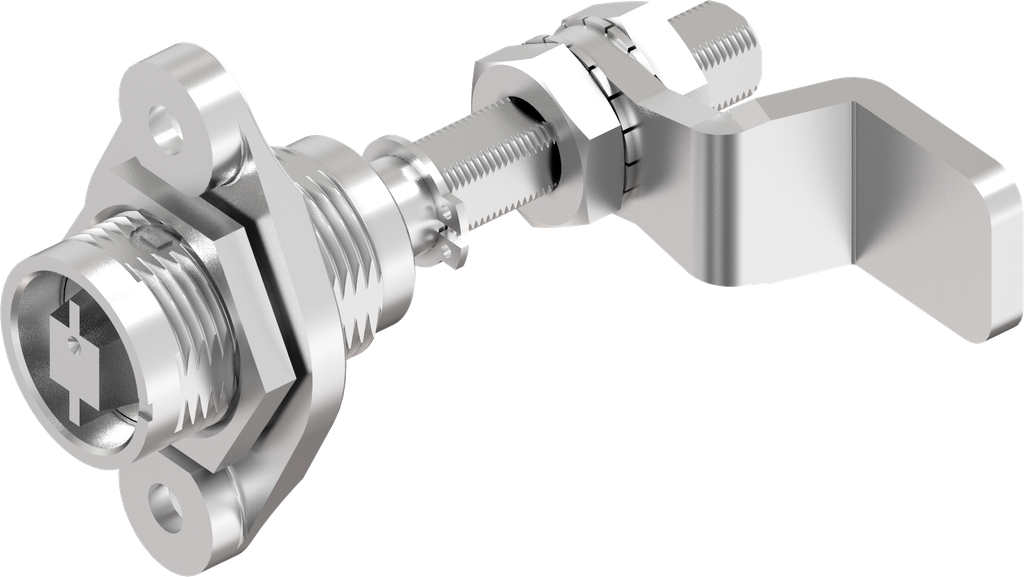

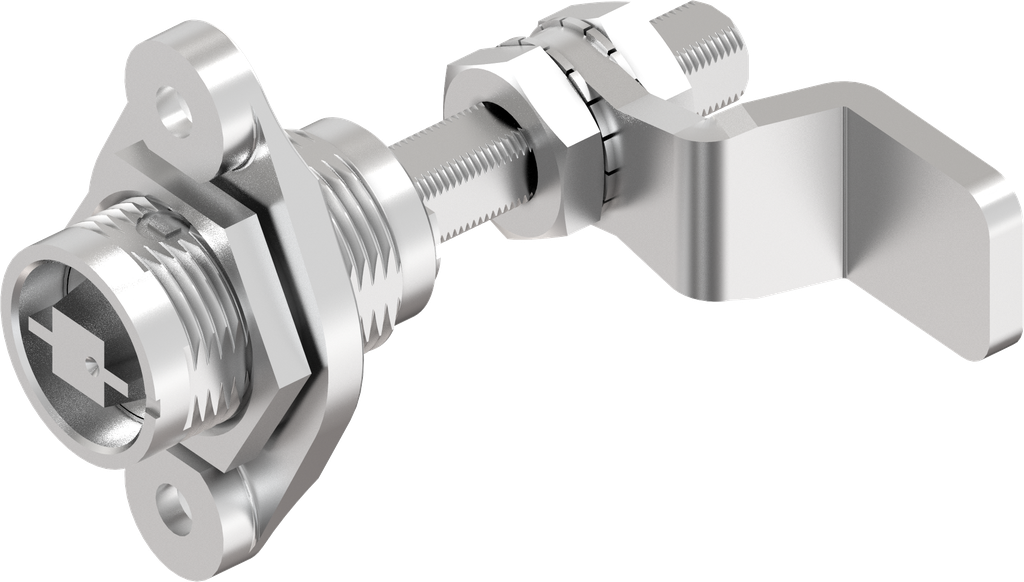

Compression latch for flush mounting version railway with outer rack, left version, Stainless steel AISI 316; 1000-SU215-LIPH

https://www.emka.com/products/1000-su215-liph https://www.emka.com/web/image/product.template/203935/image_1920?unique=47e3854

with stainless steel nut


    This combination does not exist.

    Inside the sealing Protection class IP 65 DIN EN 45545-3 class E30 (fire protection) DIN EN 61373 (shock and vibration testing) Left


    Product information:

    The compression latch is designed to be vibration-proof as such.
    Depending on the installation location and operational conditions specific checks are necessary and/or supplementary measures of fastening required.

    Internal Reference: 1000-SU215-LIPH
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 9 with marking and outer rack, railway version
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

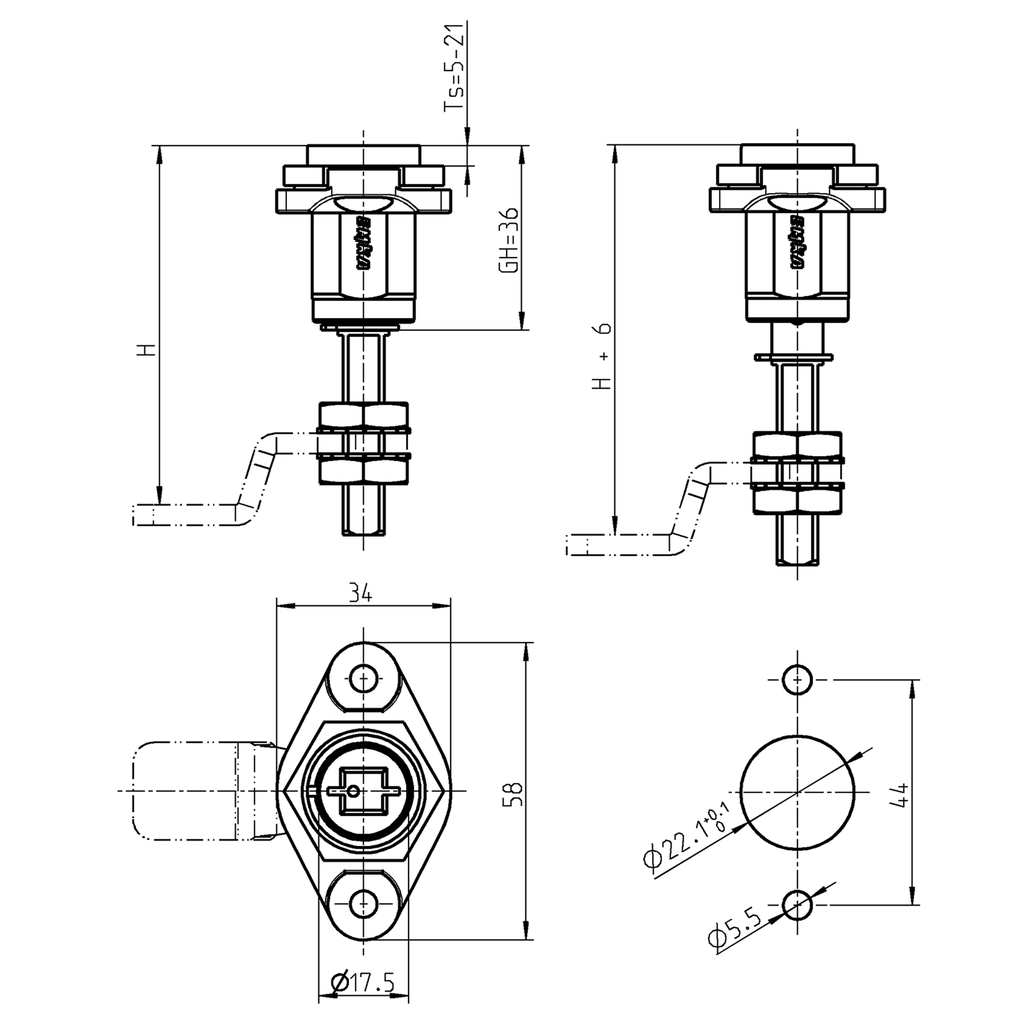

    GH Mass: 36 mm
    Compression Value : 6 mm
    Suitable for door thickness from: 5 mm
    Suitable for door thicknesses up to: 21 mm
    Locking set: Insert
    Door Version : Left
    Locking components: Cam
    Quarter turn types: Compression latch with insert
