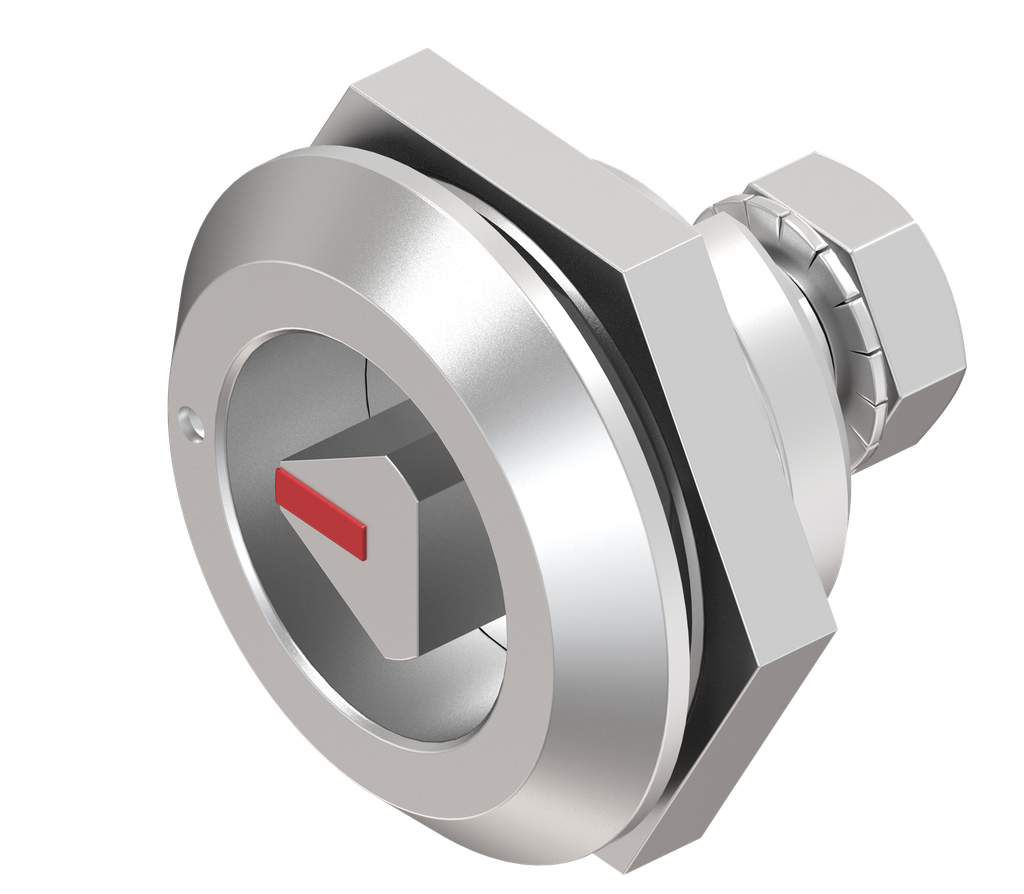

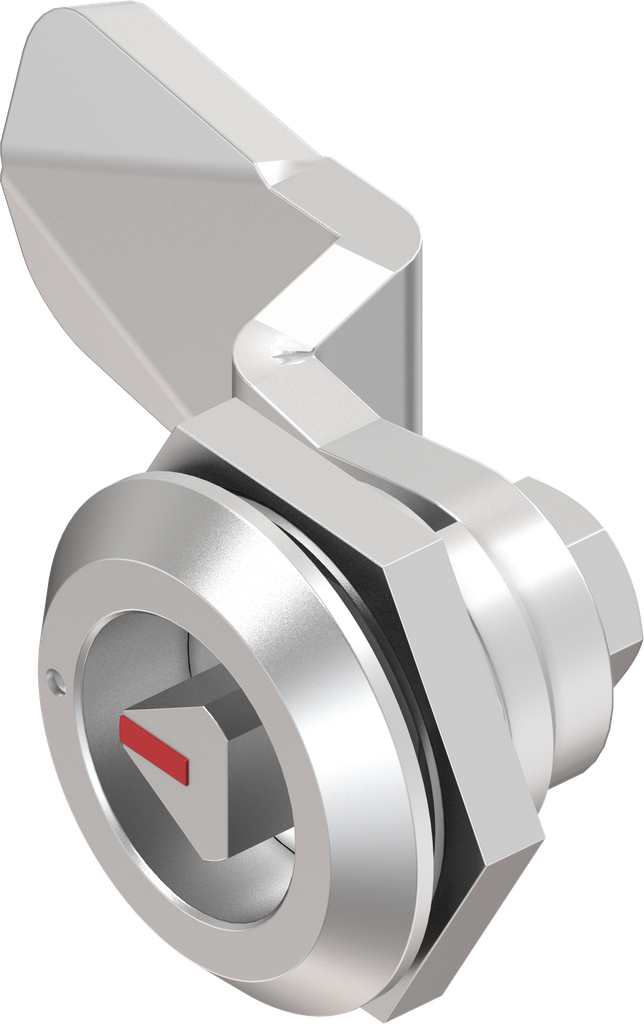

Quarter turn triangular 8 with marking, Stainless steel AISI 303; 1000-SU125

https://www.emka.com/products/1000-su125 https://www.emka.com/web/image/product.template/203782/image_1920?unique=f60687a

with stainless steel nut


    This combination does not exist.

    Inside the sealing Protection class IP 65 DIN EN 45545-2 class E20 (fire protection) Left Right


    Internal Reference: 1000-SU125
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Triangular 8
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

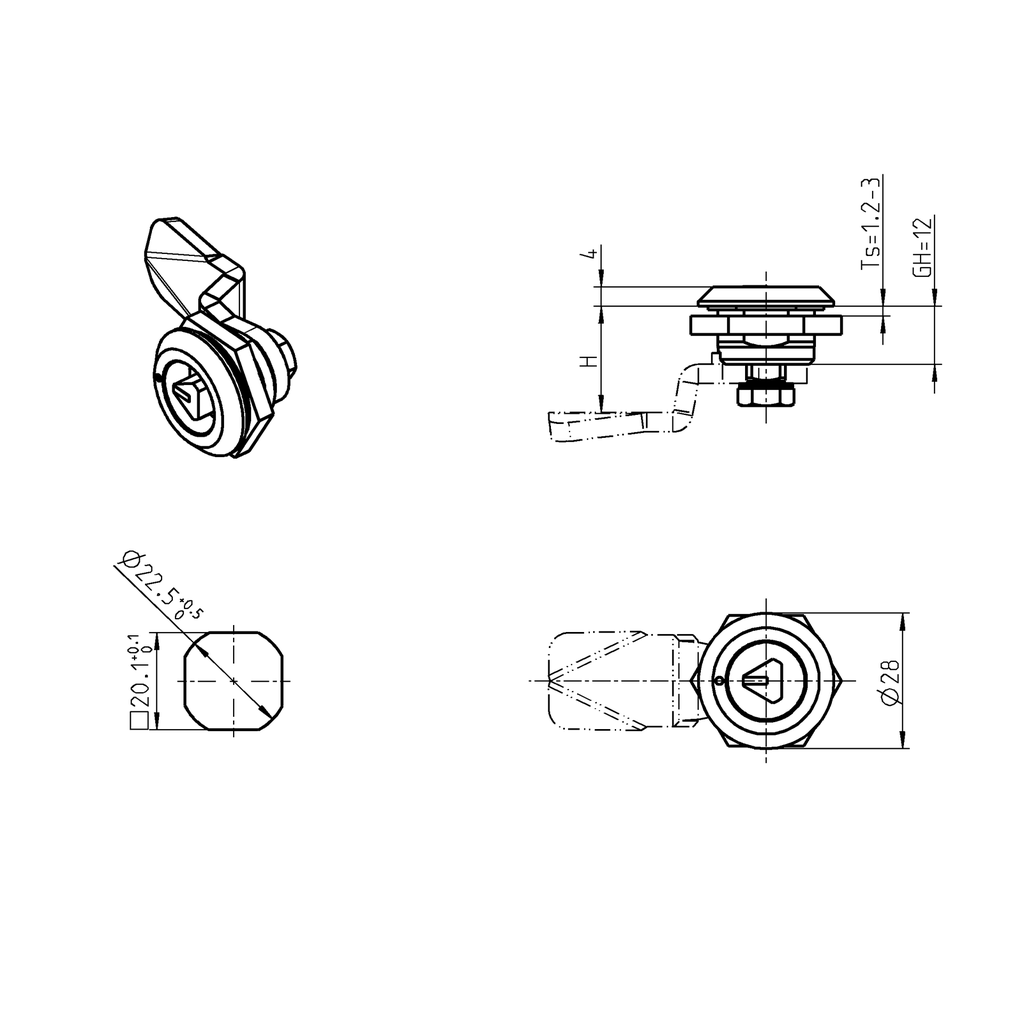

    Housing Head Size: 28 x 4 mm
    GH Mass: 12 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 3 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products

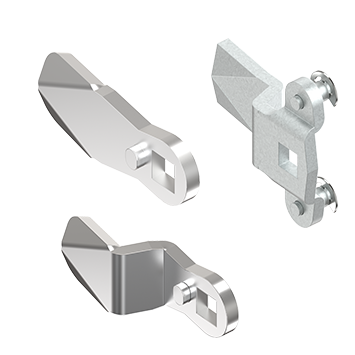

    Cam

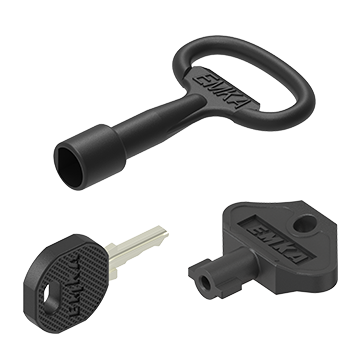

    Keys
