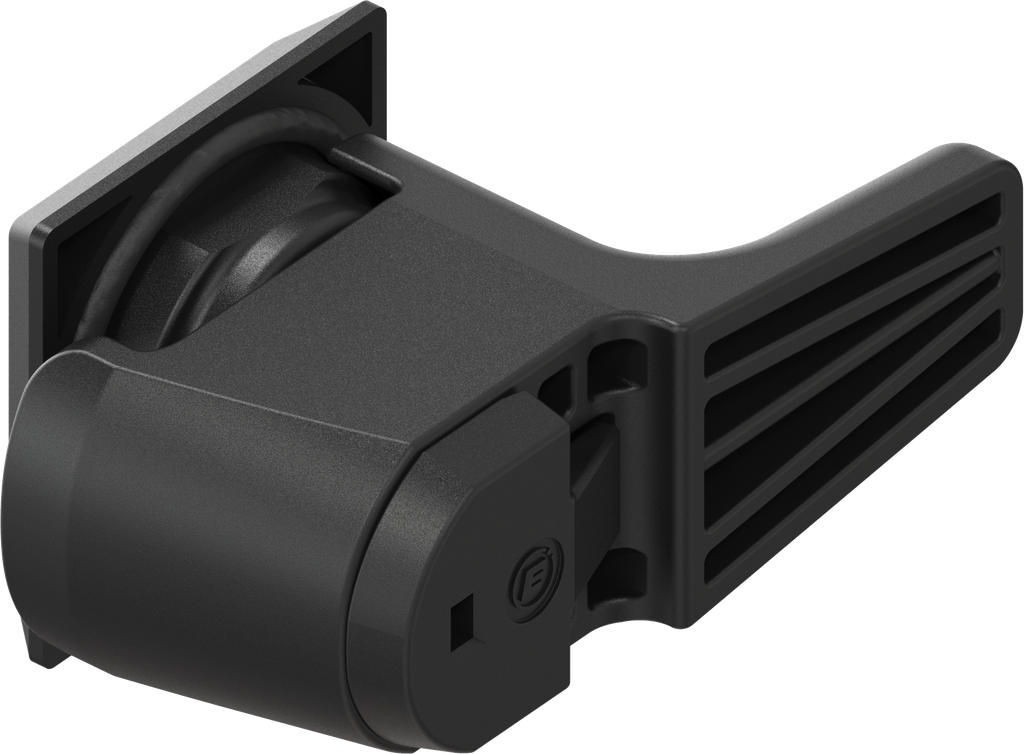

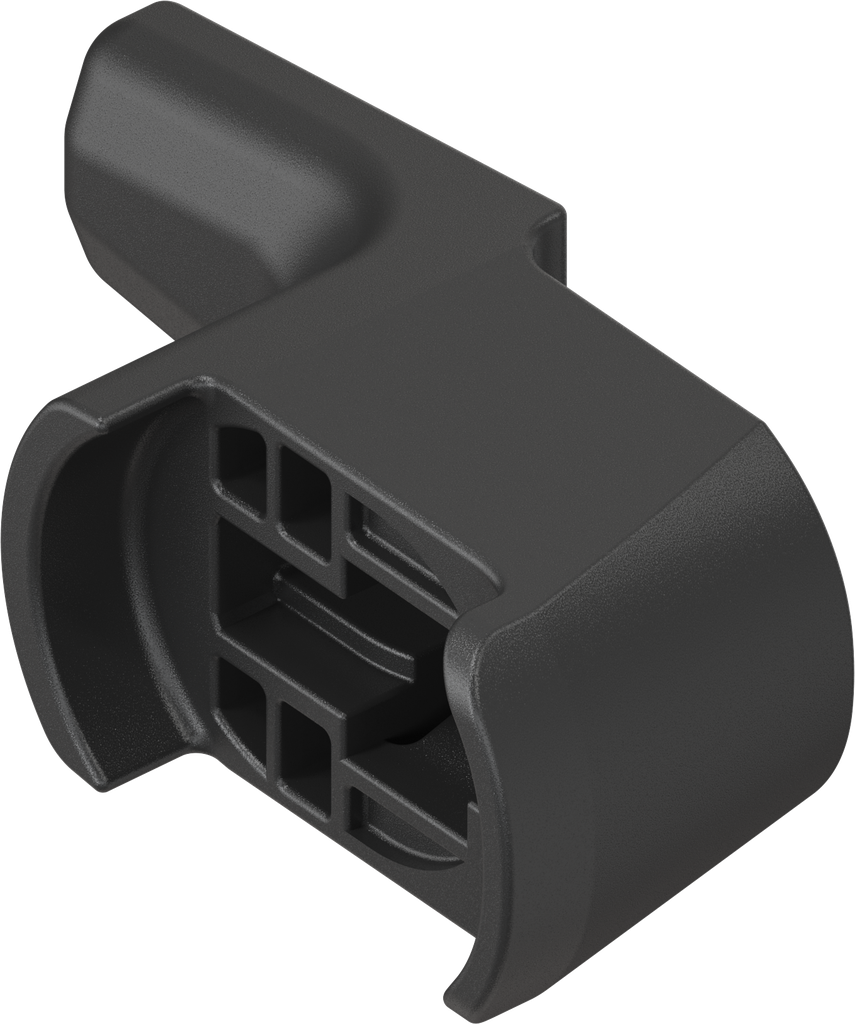

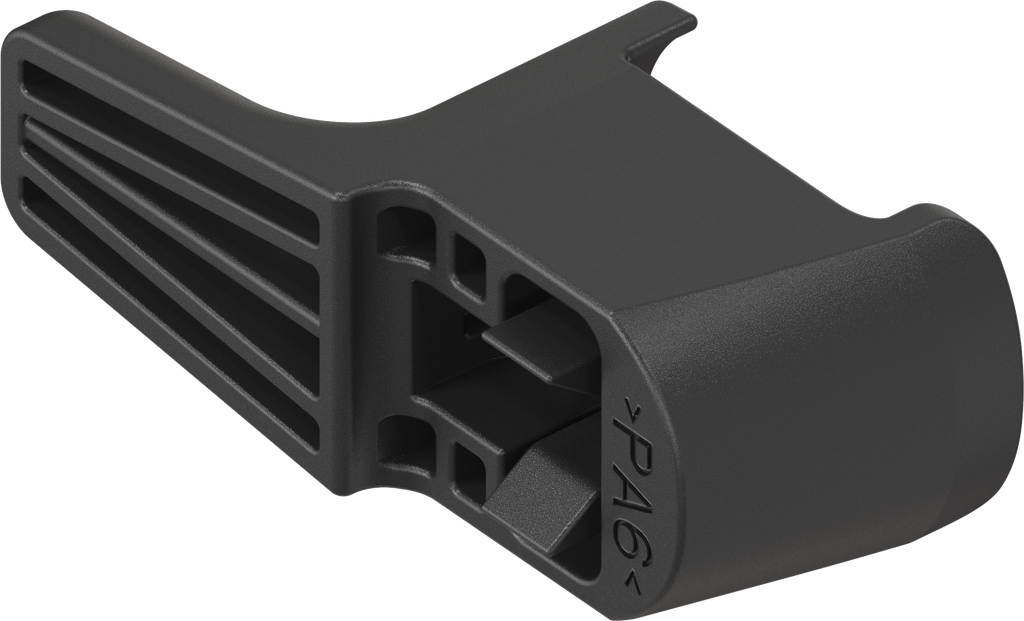

Snap-in cam H = 22 mm, Polyamide GF black; 1000-595

https://www.emka.com/products/1000-595 https://www.emka.com/web/image/product.template/59585/image_1920?unique=e978b90

for Ts = 1.5 - 2.0 mm


    This combination does not exist.

    Inside the sealing Protection class IP 65


    Product Benefits:

    • Cost savings due to assembly without tools within seconds
    • Smooth operation (no inner rotation due to design)
    • Snap-in cam with safety cap
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Product information:

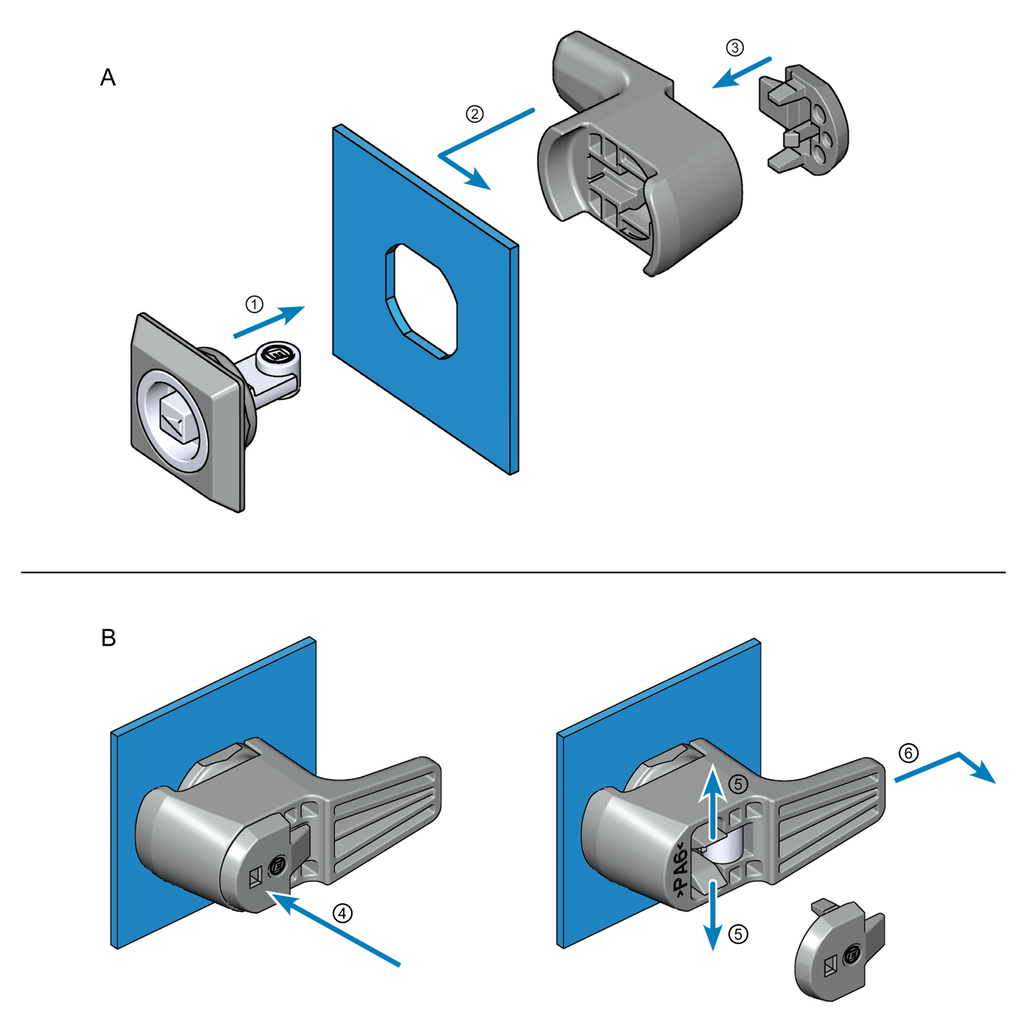

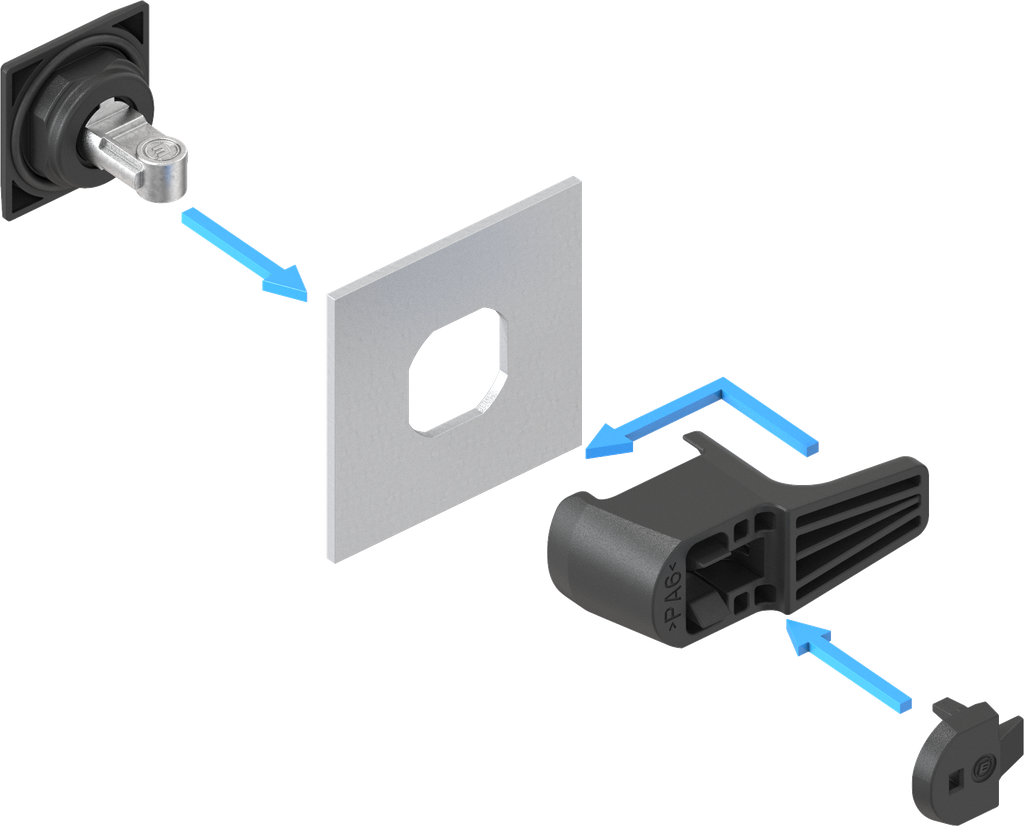

    A = Assembly: example right-hand version
    B = Disassembly

    Internal Reference: 1000-595
    Product Type: Cam
    Material: Polyamide GF
    Program: 1000
    Surface: black
    Catalog sheet: 1B-170
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Mounting Positions : Inside the sealing

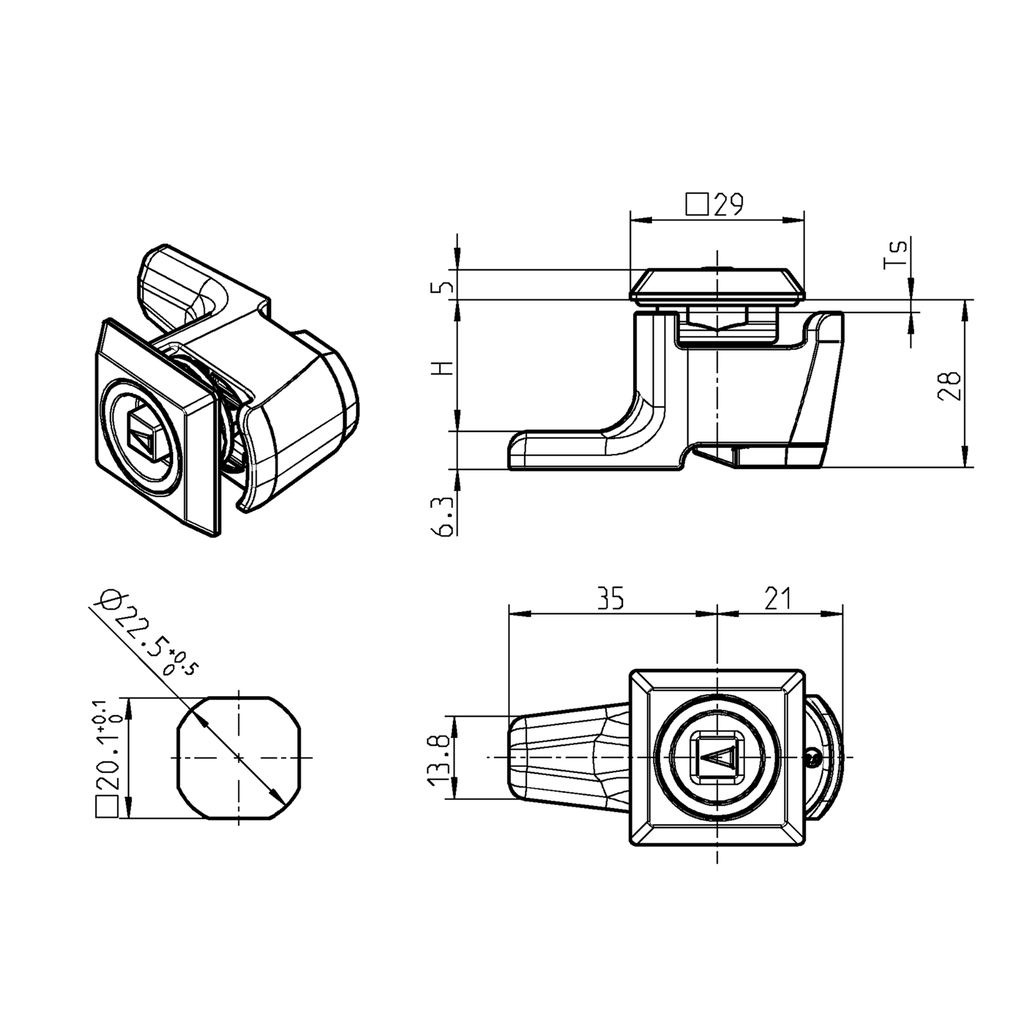

    Dimension H: 22 mm
    Compression Value : 2 mm
    Dimension L: 35 mm
    Spoon: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Quarter turn types: Quarter turn with simple insert,Quarter turn for assembly without tools
