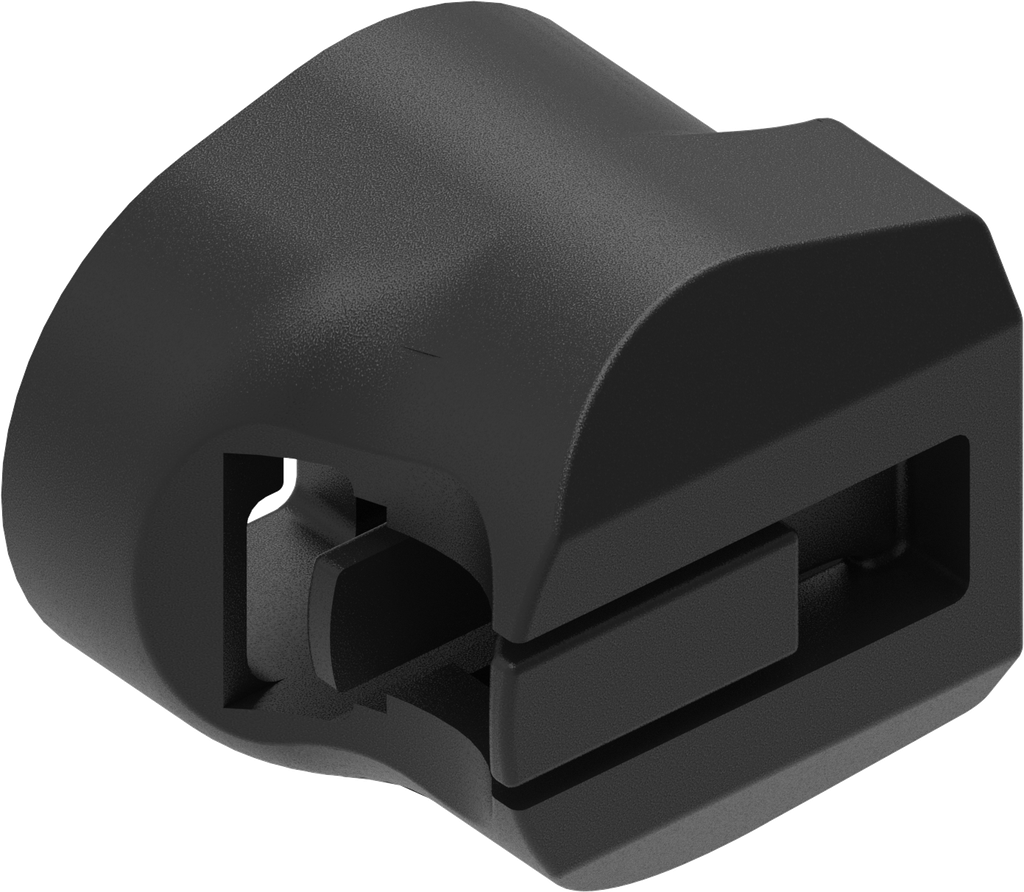

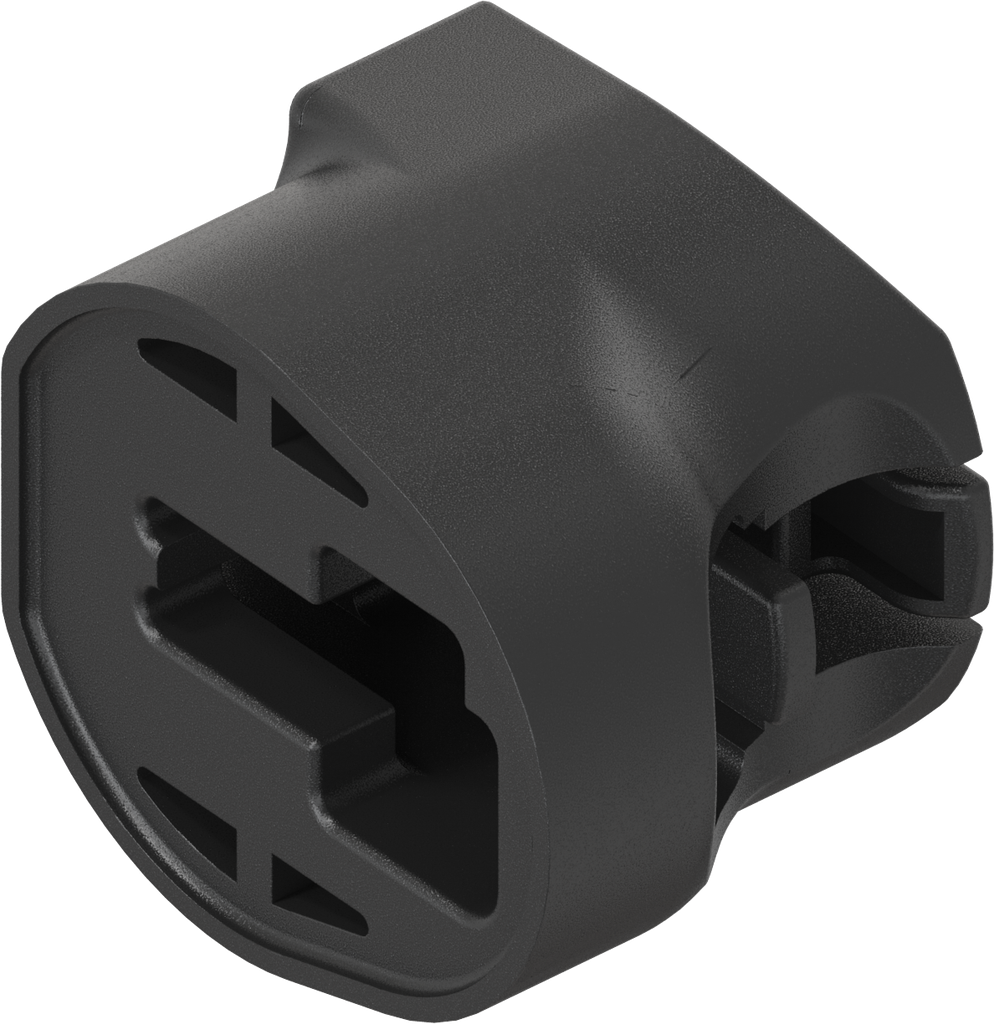

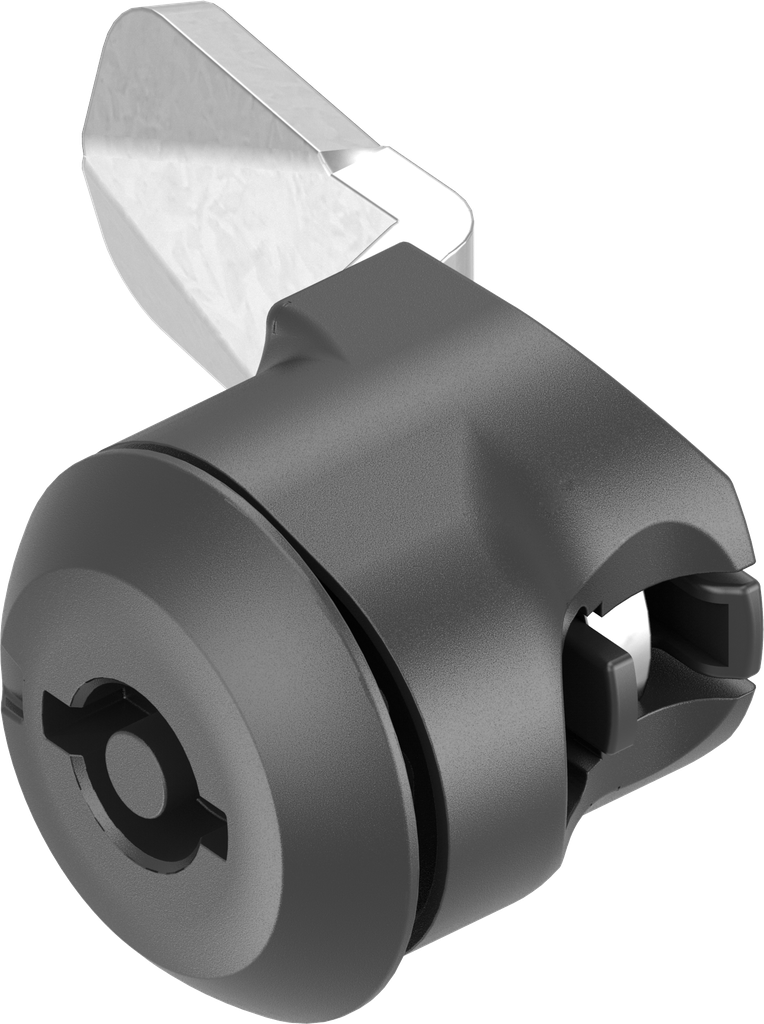

Click-in housing for Ts = 1.5 - 2.0 mm, Polyamide GF black; 1000-551

https://www.emka.com/products/1000-551 https://www.emka.com/web/image/product.template/59564/image_1920?unique=e978b90

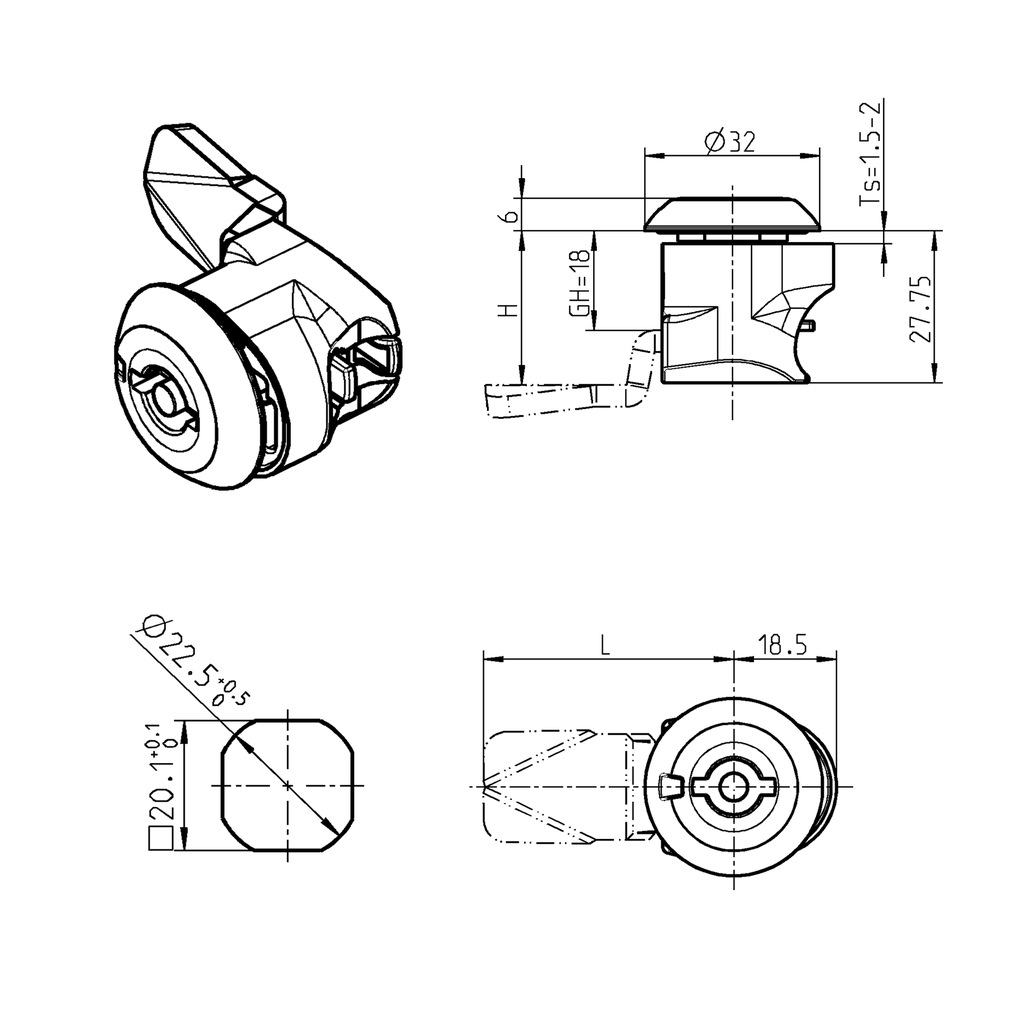

Length of housing (GH) = 18 mm


    This combination does not exist.

    clamp-on / clip fix Inside the sealing Protection class IP 69K Left Right


    Product Benefits:

    • Cost savings due to assembly and disassembly without tools within seconds
    • Optionally available with polyamide or steel cam
    • Suitable for many standard cams
    • Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
    • Smooth operation (no inner rotation due to design)
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Product information:

    Door gauge incl. surface coating

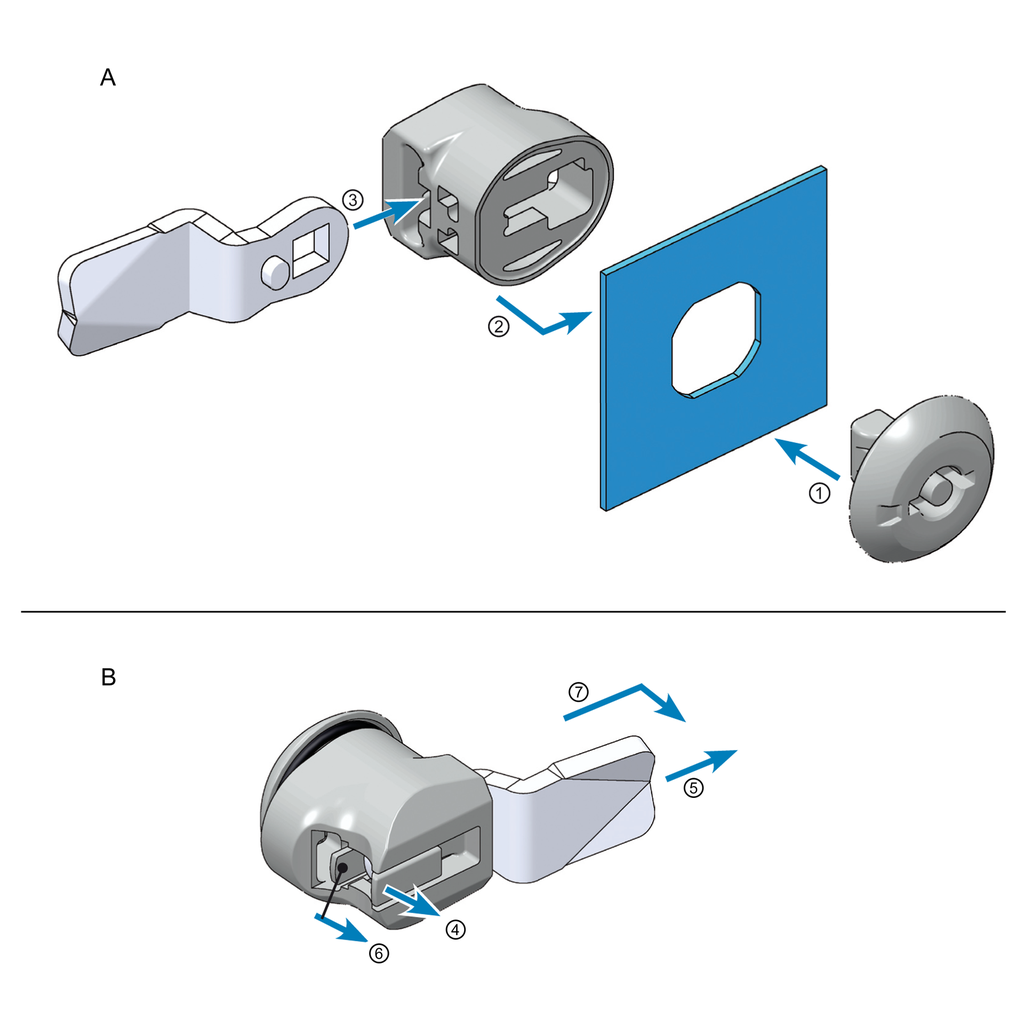

    A = Assembly
    ① = Insert the insert part into the cut out
    ② = Place the click-in housing and shift it laterally
    ③ = Insert the cam into the click-in housing acoustic and visual verification of clicking in place of click-in housing

    B = Disassembly
    ④ = Lift locking arm of the cam
    ⑤ = Pull out the cam of the click-in housing
    ⑥ = Lift locking arm of the click-in housing
    ⑦ = Shift the click-in housing laterally and remove it

    Assembly instruction:

    Assembly door stop on the right:
    Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing.


    Assembly door stop on the left:
    Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.

    Internal Reference: 1000-551
    Product Type: Housing
    Material: Polyamide GF
    Program: 1000
    Surface: black
    Catalog sheet: 1B-180
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Fixing type of housing : clamp-on / clip fix
    Mounting Positions : Inside the sealing
    GH Mass: 18 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert,Quarter turn for assembly without tools
    No Specifications
