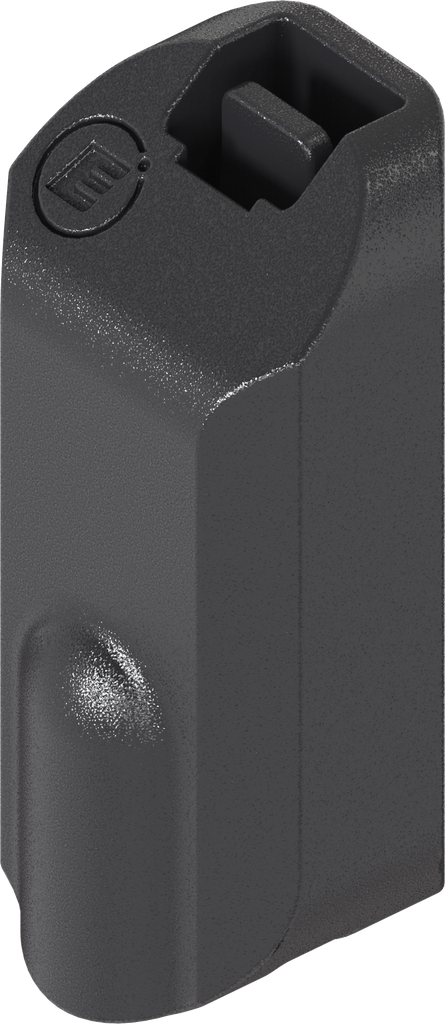

Shoe for round rod, Polyamide GF black; 1000-526-AA

https://www.emka.com/products/1000-526-aa https://www.emka.com/web/image/product.template/303295/image_1920?unique=2626889


    This combination does not exist.

    Inside the sealing


    Product information:

    ① = Calculation of the rod length L
    ② = Z = Rod control length ( e.g. dimension 400 on catalogue page 3YA-140 )
    Z = Cam gauge for bore holes for rod control (e.g. dimension 18 for 1107 or dimension 26 for 1000 on catalogue page 3YC-120 )
    ③ = Clear height
    * = Dimension Y depending on type of gasketing
    Round rod according to customer requirements on request
    Please indicate dimension L in the order

    Internal Reference: 1000-526-AA
    Product Type: Shoe
    Material: Polyamide GF
    Program: 1000
    Surface: black
    Catalog sheet: 3ZB-180
    Mounting Positions : Inside the sealing
    Dimension L, Variable: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
