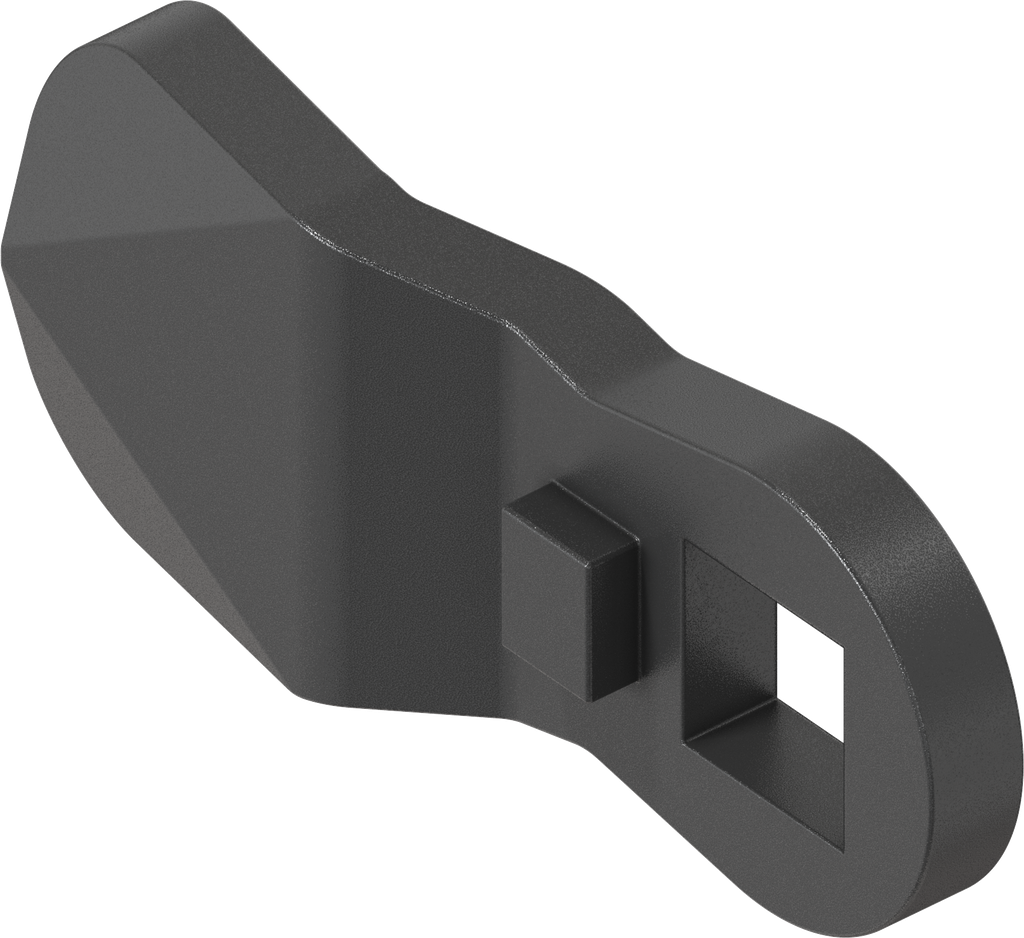

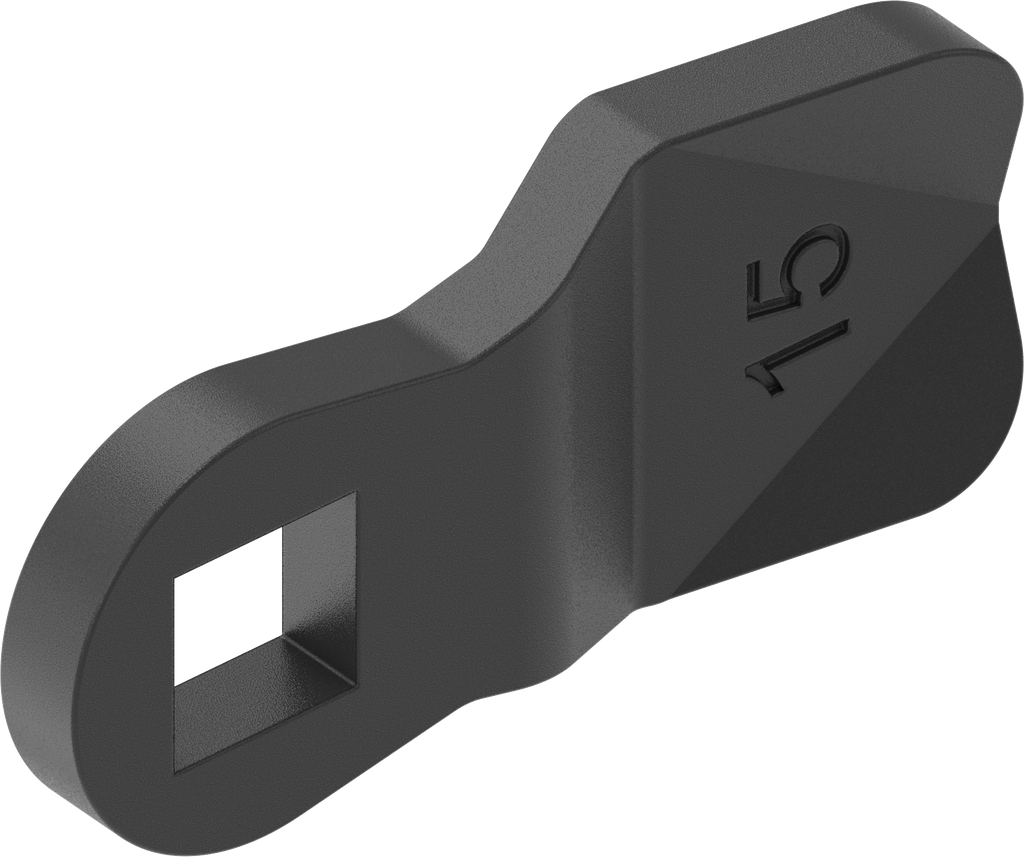

Cam, Polyamide GF black; 1000-5043-SI

https://www.emka.com/products/1000-5043-si https://www.emka.com/web/image/product.template/59612/image_1920?unique=e978b90

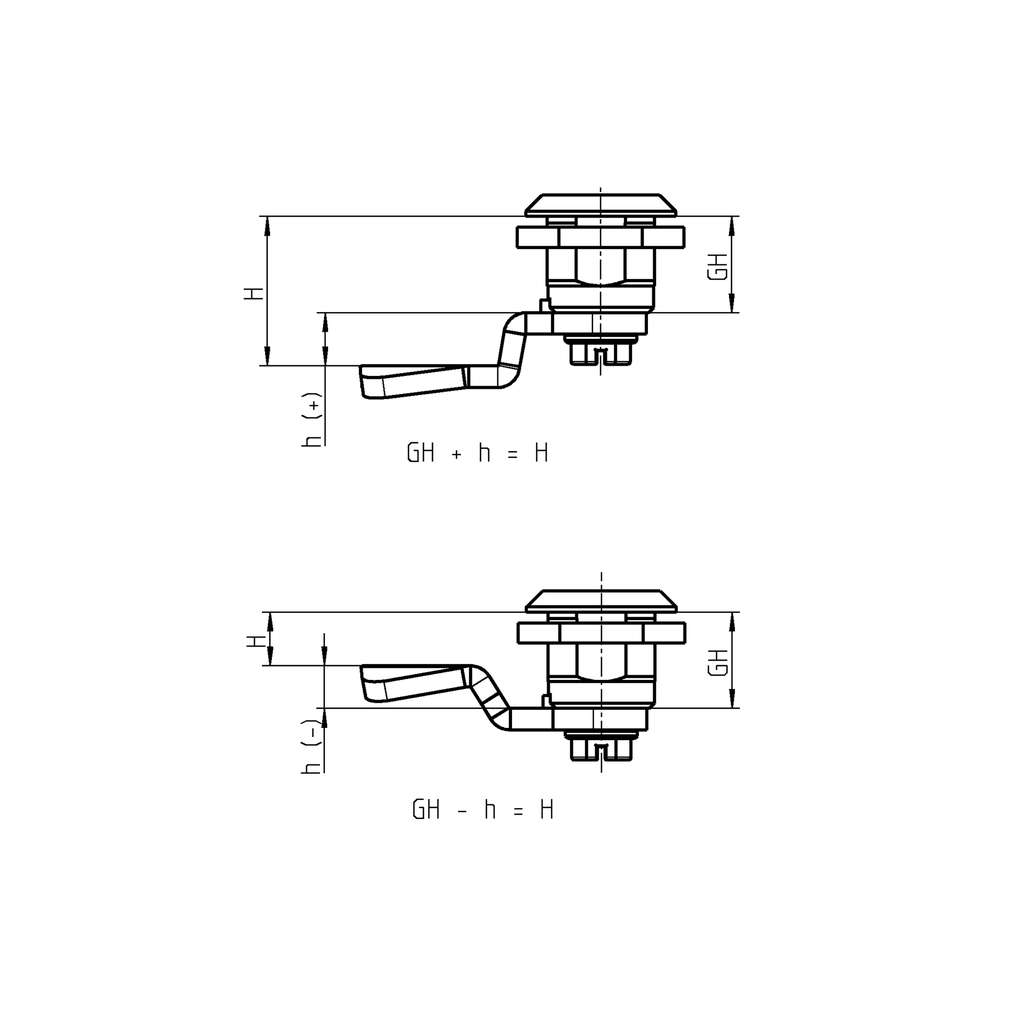

Offset h = -3 mm


    This combination does not exist.

    Inside the sealing


    Internal Reference: 1000-5043-SI
    Product Type: Cam
    Material: Polyamide GF
    Program: 1000
    Surface: black
    Catalog sheet: 1C-120
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Compression Value : 2 mm
    Offset: negative
    offset of cam: -3 mm
    Short spoon: Yes

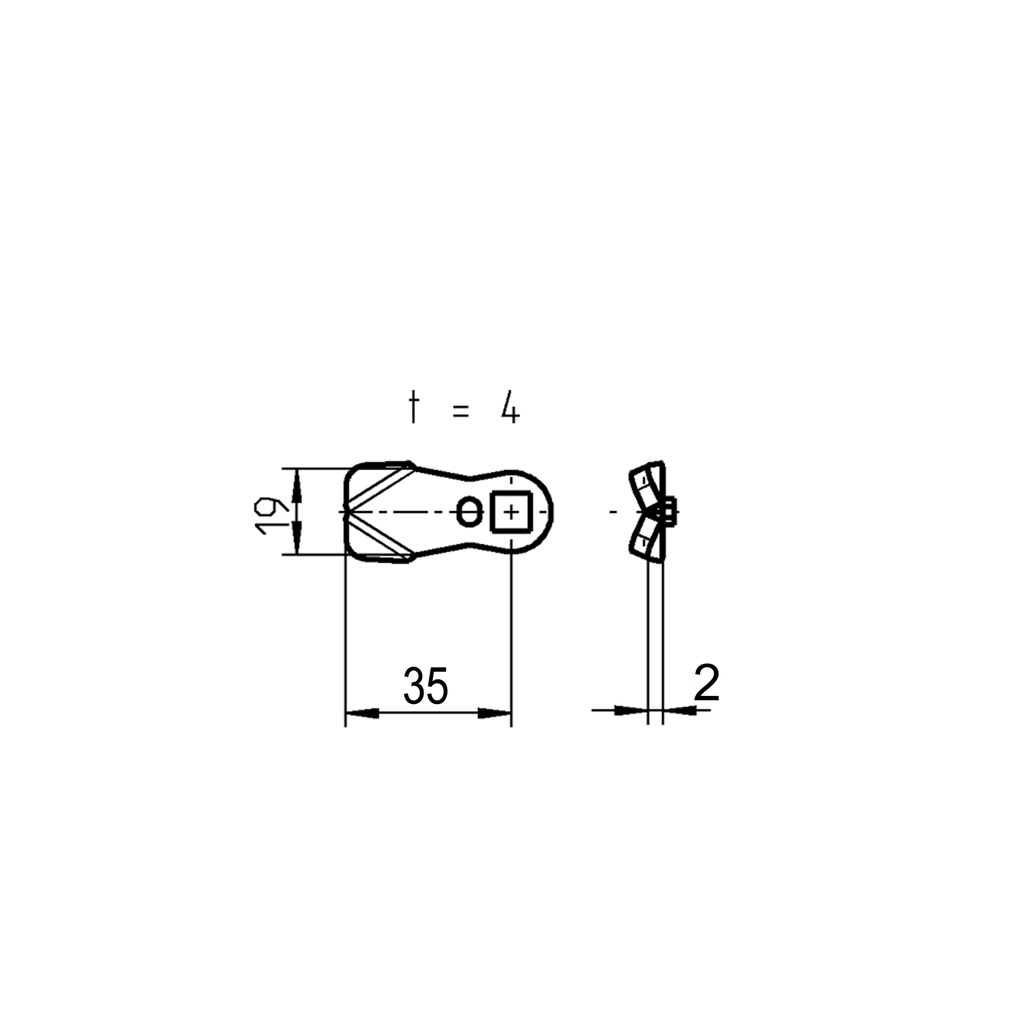

    Dimension L: 35 mm
    Dimension t: 4 mm
    No Specifications
    View All Products

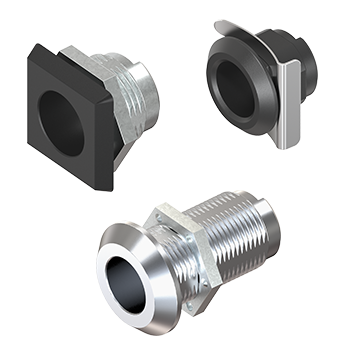

    Housing
    Ramp
    Assembly

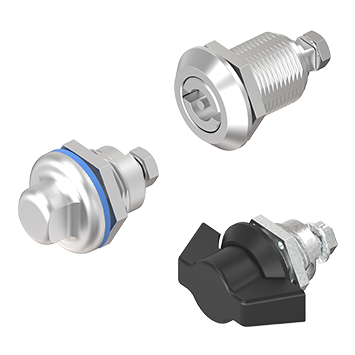

    Quarter turn
