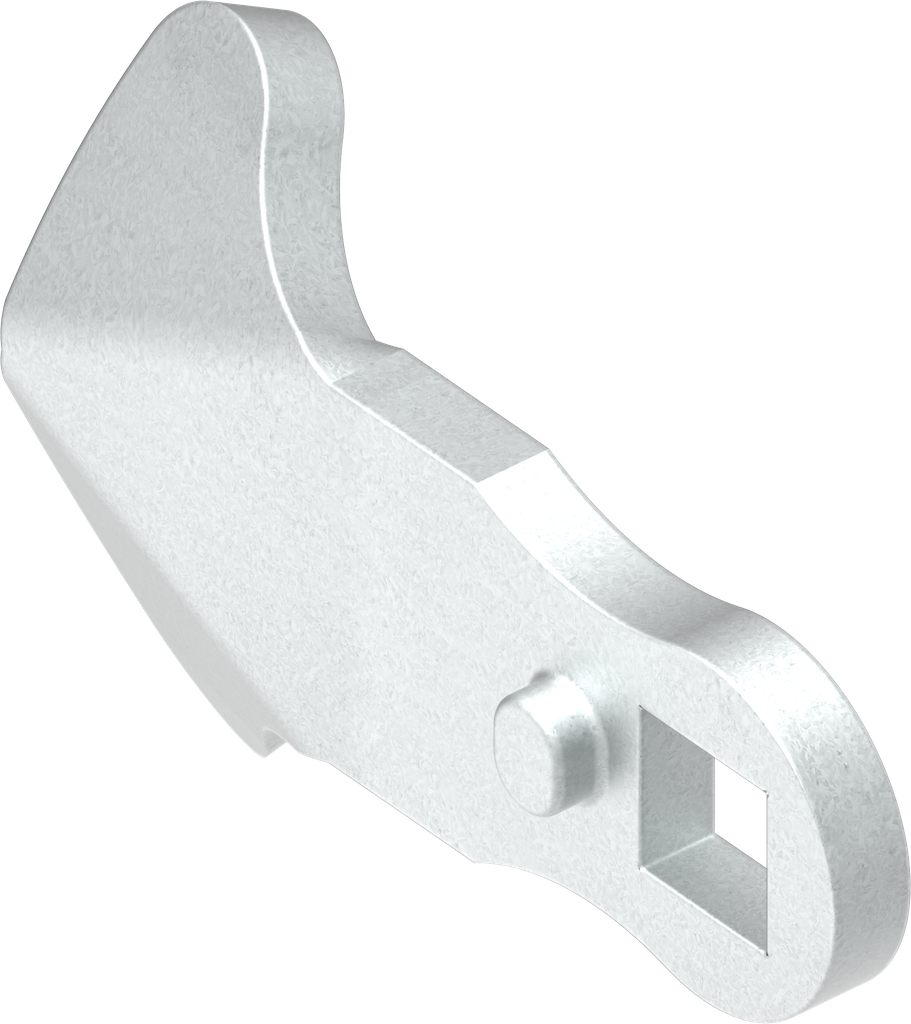

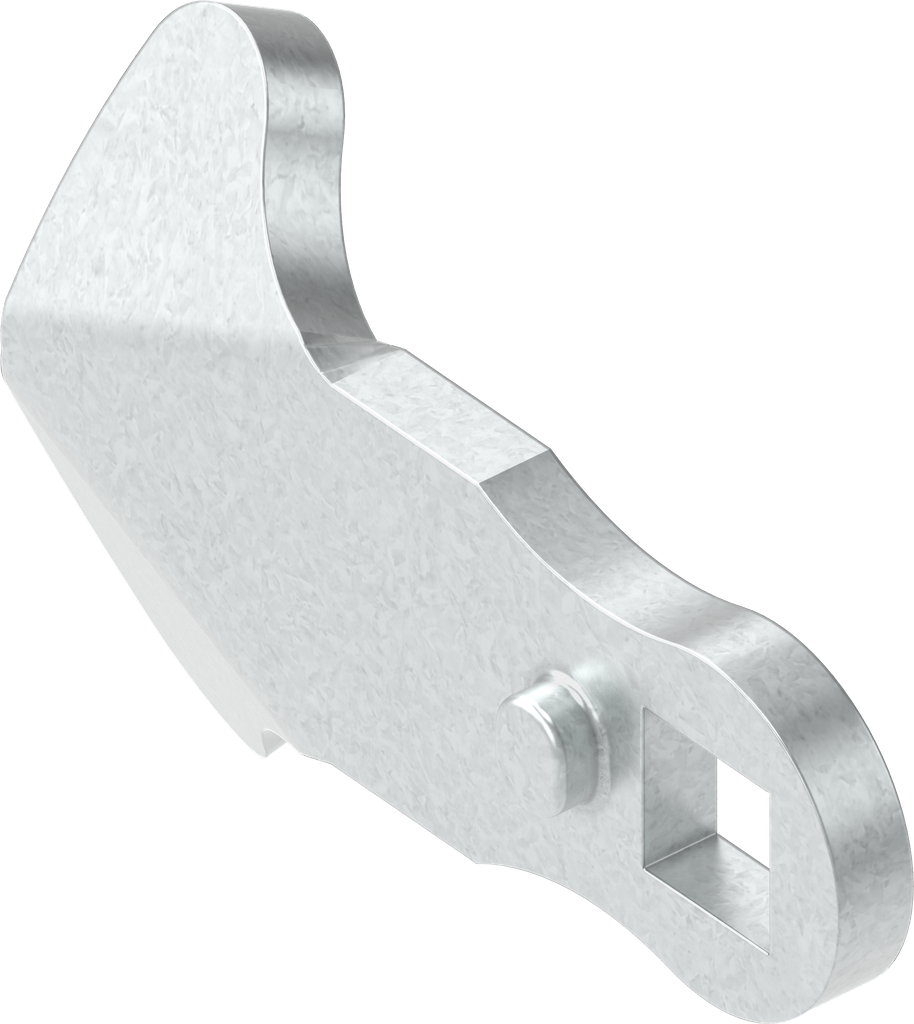

Guide cam, Steel zinc-plated; 1000-293

https://www.emka.com/products/1000-293 https://www.emka.com/web/image/product.template/59345/image_1920?unique=4564128

Offset h = 0 mm


    This combination does not exist.

    Inside the sealing


    Internal Reference: 1000-293
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 3YB-440
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 6 mm
    Offset: straight
    offset of cam: 0 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
