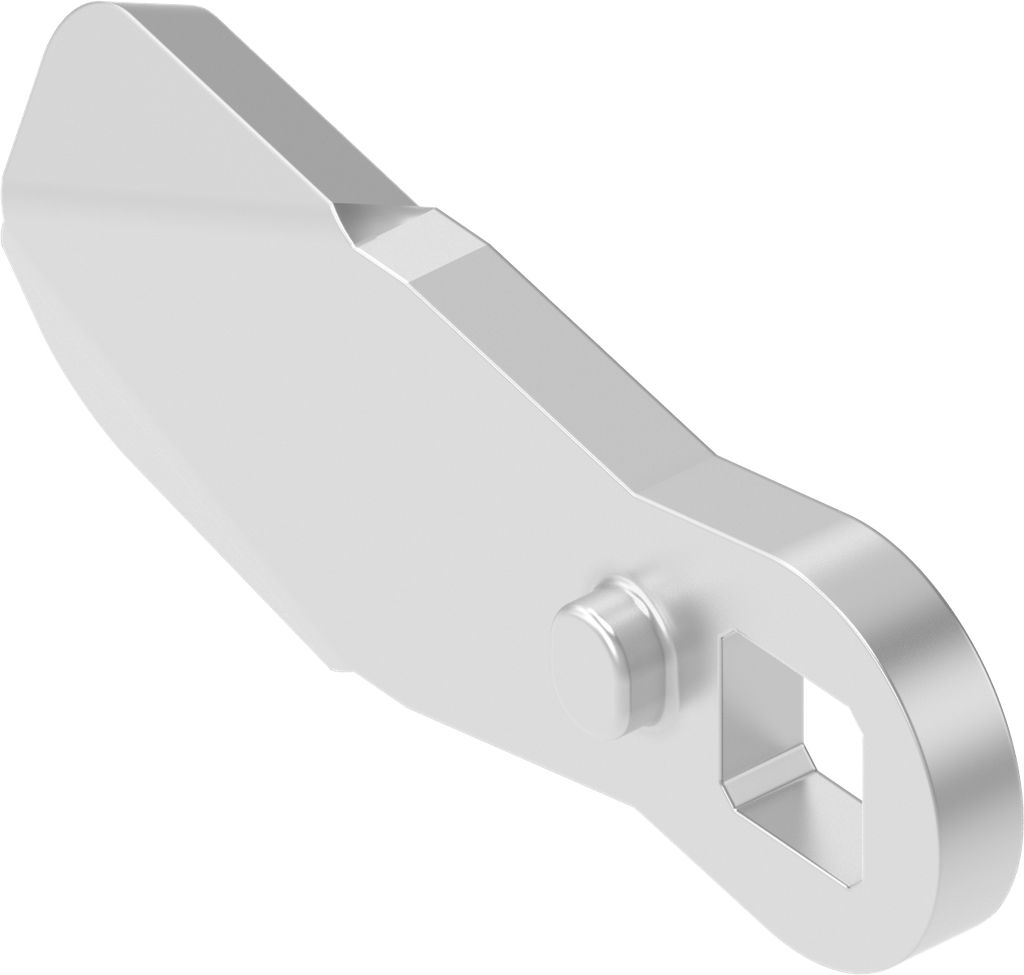

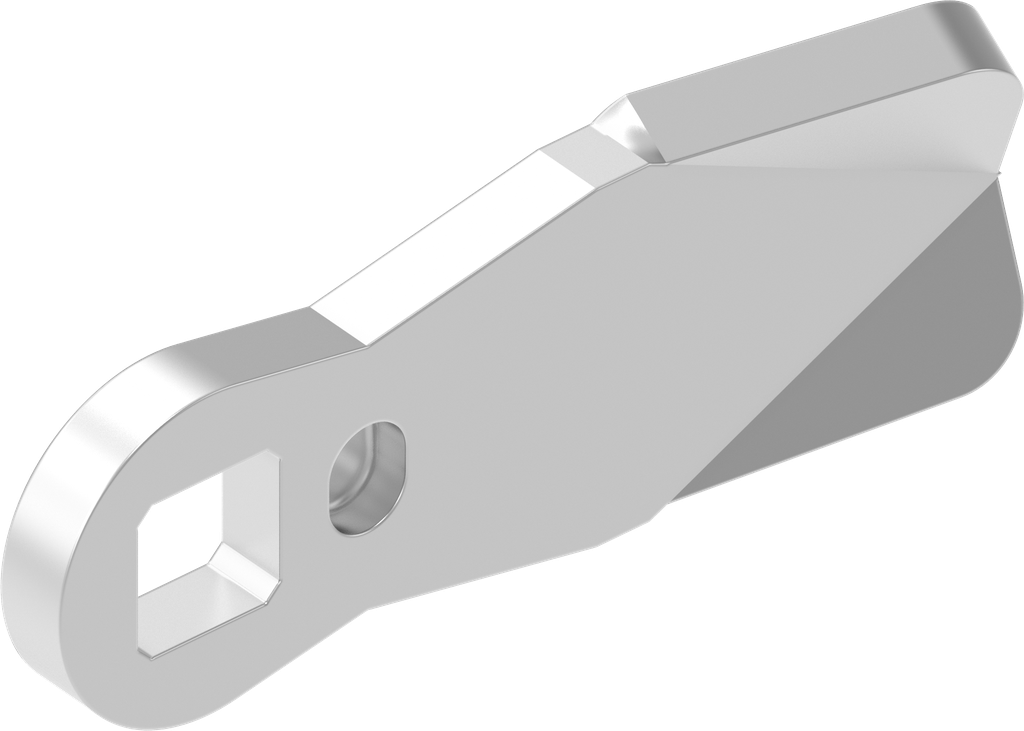

Cam, Stainless steel AISI 316; 1000-227-PD

https://www.emka.com/products/1000-227-pd https://www.emka.com/web/image/product.template/59286/image_1920?unique=4564128

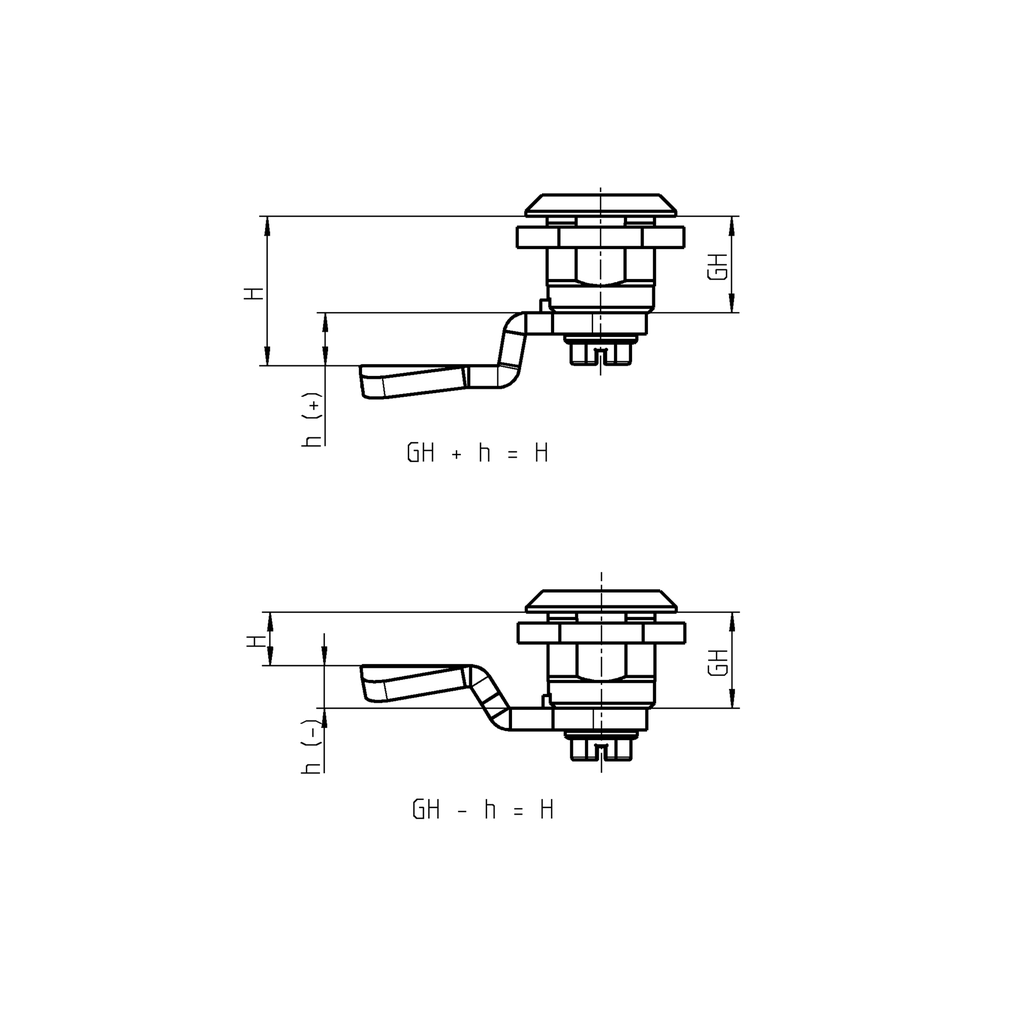

Offset h = 0 mm


    This combination does not exist.

    Inside the sealing


    Internal Reference: 1000-227-PD
    Product Type: Cam
    Material: Stainless steel AISI 316
    Program: 1000
    Catalog sheet: 3ZD-240
    Dimension A: 23 mm
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: straight
    offset of cam: 0 mm

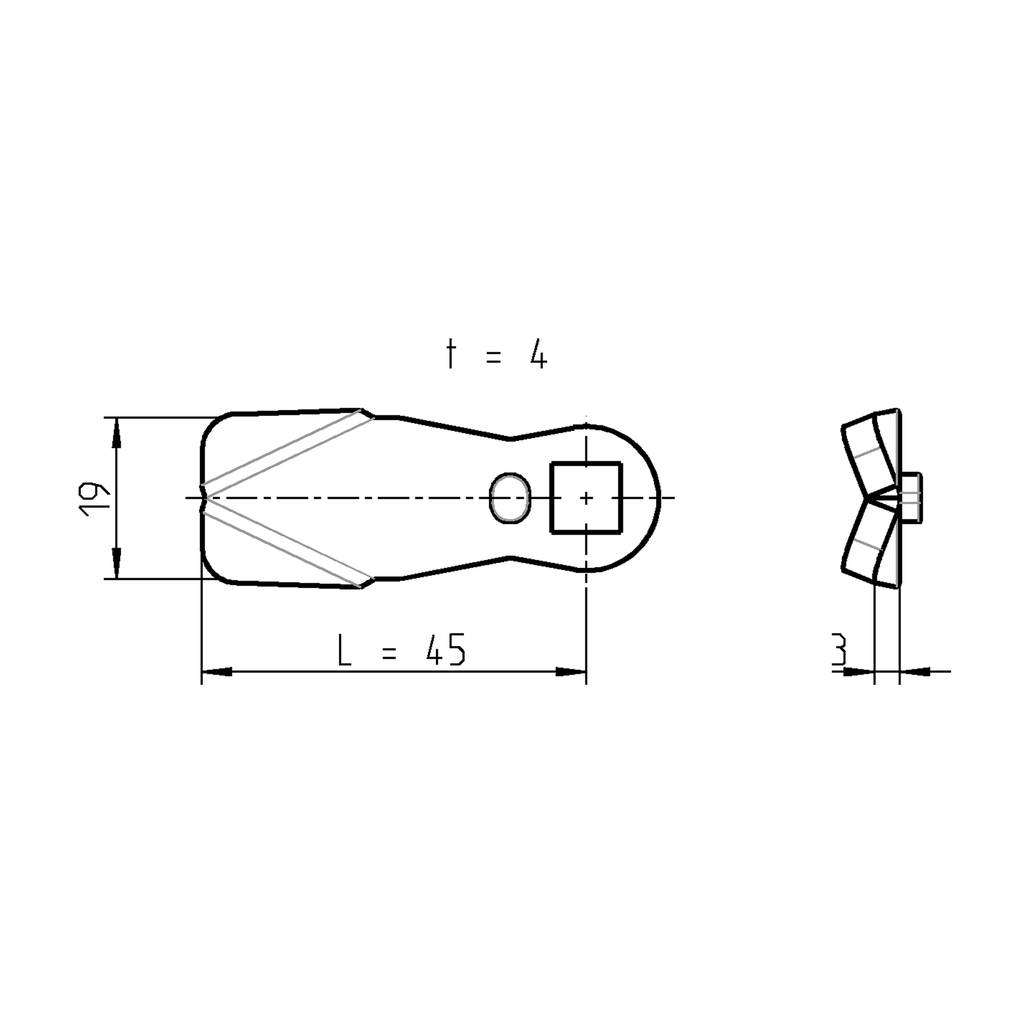

    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
