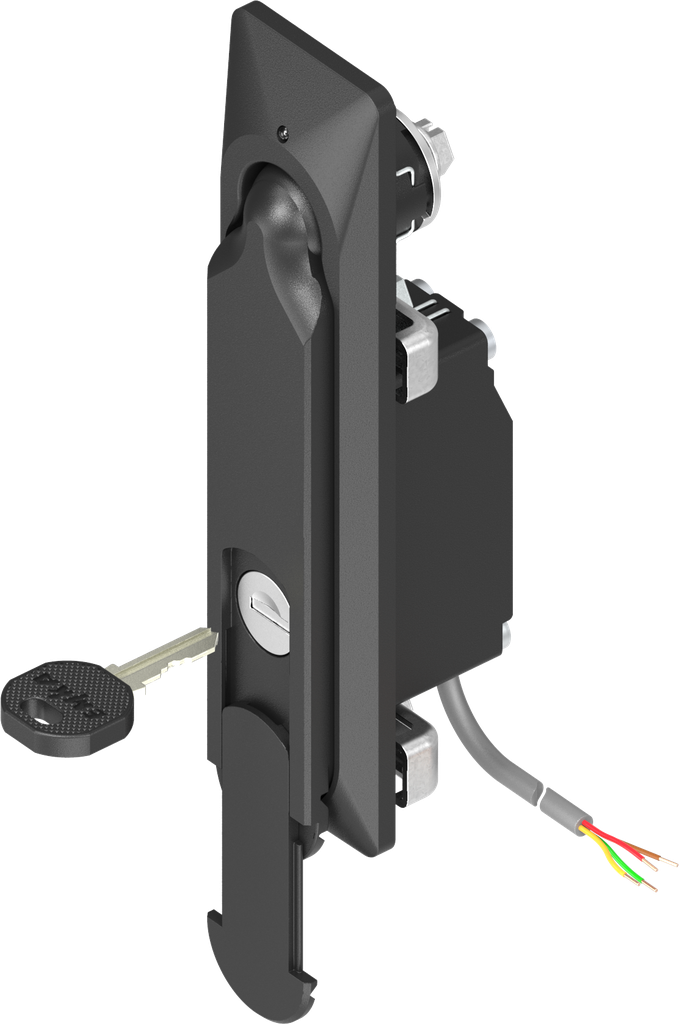

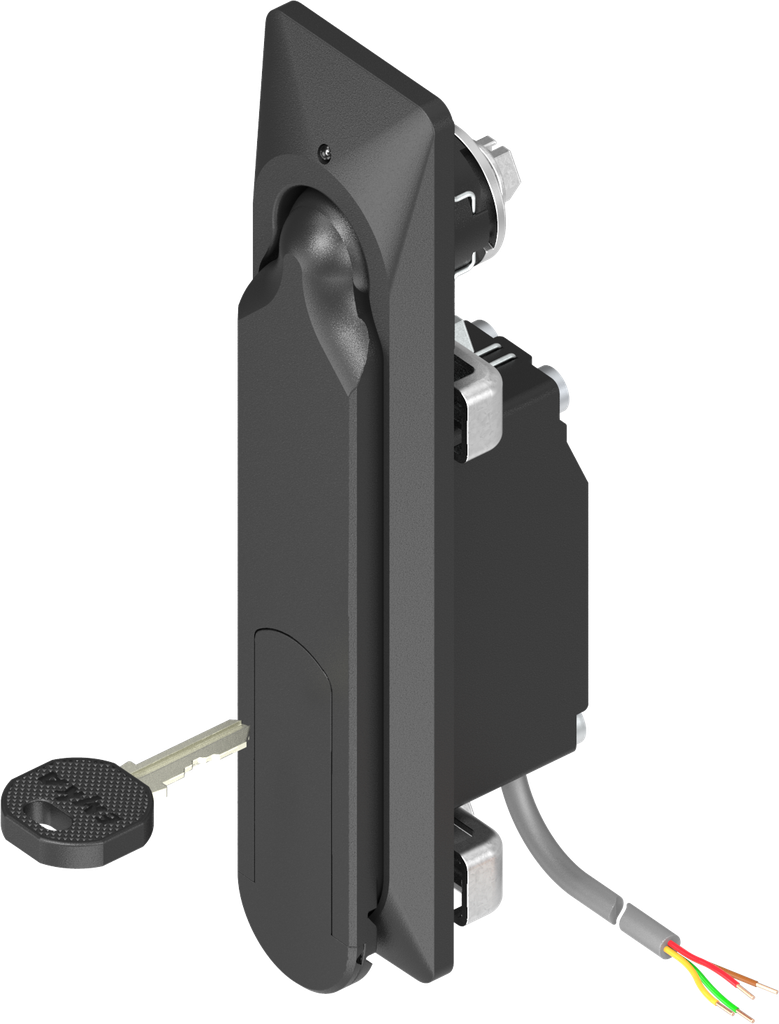

Schwenkgriff mit elektromechanischer Entriegelung und Notöffnung Schließung EK 333, GD-Zn schwarz gepulvert; 1154-U6-03
Produkthinweis:

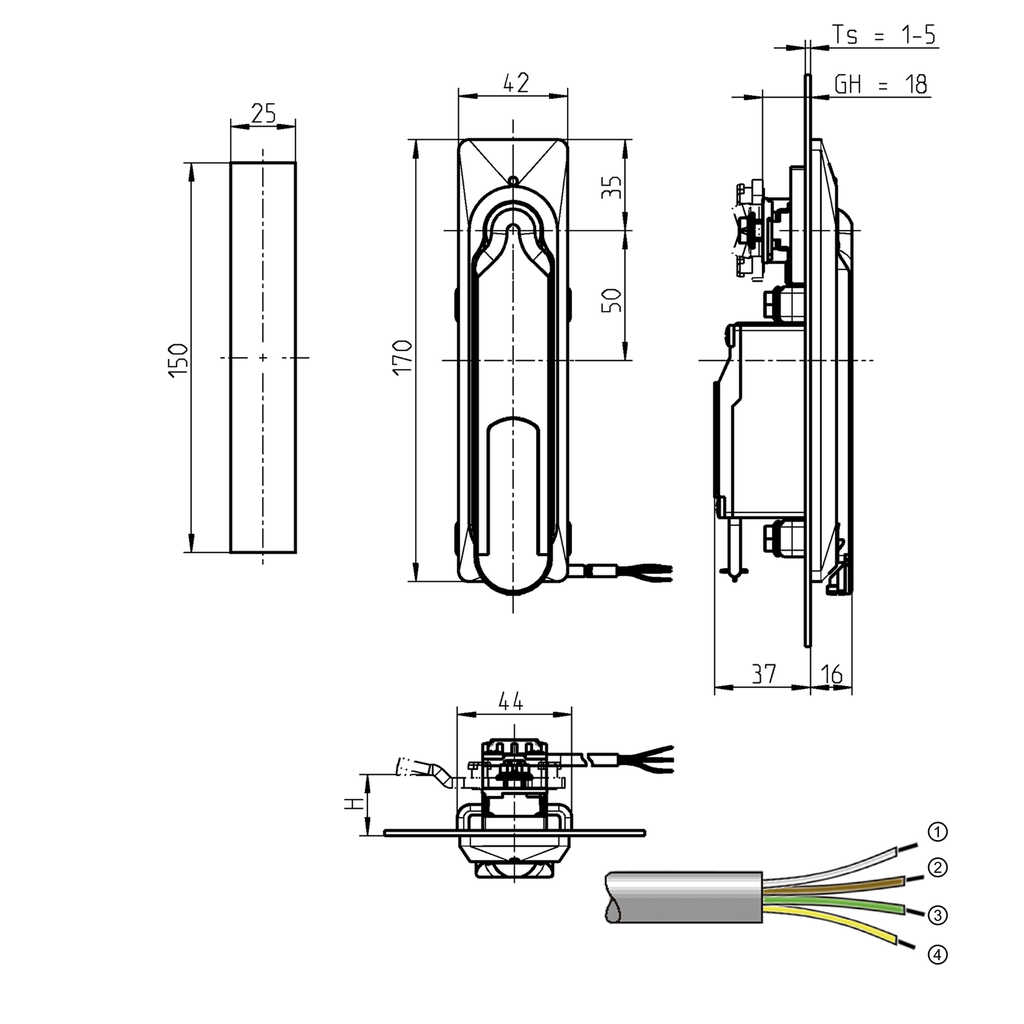

① = white (+)
② = brown (-)
③ = green contact
④ = yellow contact
Two countersunk screws M3 for the cylinder cover are included in the delivery. Cross recess and hexagon female SW 2 with pin
Funktion:
This handle is suitable for locking outdoor cabinets.
By applying a 12 V, 24 V or 48 V DC signal, the handle is released. After pushing the handle briefly into the dish, it can be opened. The integrated Reed contact is used for remote monitoring of the handle status. To lock the handle it must be pressed into the dish until the locking mechanism engages. The provided key is used to open the handle in case of power failure. To open the cylinder cover the screw M3 has to be removed. Then it is possible to unlock by means of round / pin cylinder.
On release of the handle, the LED is illuminated.
The maximum power-on time is 1 minute.
